Kuhn - Master 103 2E

Name: Kuhn - Master 103 2E
Brand: Kuhn

Durable ...

View In-Stock

Overview

Durable. Reliable. Economical.

The KUHN Master 103 Series rollover plows are designed for small, specialized farm operations. The 103 Series has a main frame size of 4” with 2 to 4 bottoms per side to be durable, reliable and economically efficient.

The Master 103 Series plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with the ability to adjust the traction-bolt models from 28” to 29 1/2” of underbeam clearance. This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension.

Specifications

Model

Master 103 Series

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Kuhn

Quantity

Manufacturer Qty

Hitch

Cat. 2 with cross-shaft

Working Width

14’’ or 16’’ (35 or 40 cm) delivered at 16’’ (40 cm)

Main Beam Dimension

3.9” x 3.9” (100 x 100 mm)

Standard Moldboards

L : Wide helicoidal

Underbeam Clearance

27.5’’ (70 cm)

Maximum Tractor Power

60 hp (45 kW)

Extendable By One Bottom

Extension Beam Dimension

3.9” x 3.9” (100 x 100 mm)

Point To Point Clearance

35’’ (90 cm)

Number Of Bottoms Per Side

Offset And Angling Adjustment

Mechanical

Adjustable Depth Wheel With Tire

600 x 210 mm standard

Hydraulic Rollover With 1 Cylinder

Standard

Required Tractor Hydraulic Connections

1 DA for rollover

Approximate Machine Weight For T Version

1,168 lbs (530 kg)

Approximate Machine Weight For NSH Version

1,488 lbs (675 kg)

Gallery

equipment

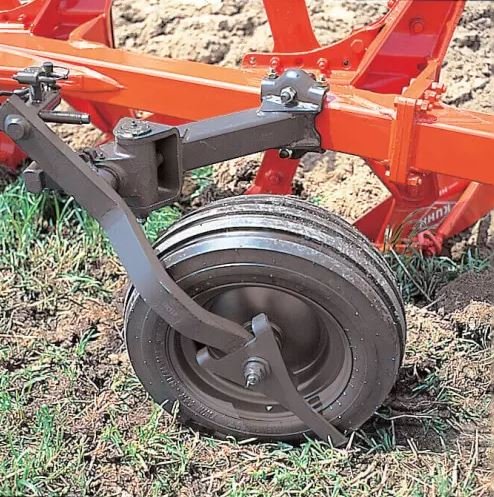

Standard Rubber Depth Wheel

The depth wheel follows any change of plowing width. It features simple bolt adjustments with the ability to set left and right sides independently. It can be placed in many locations on the frame to ensure optimum positioning for all conditions.
