Kuhn - VARI-MASTER L 4E

Name: Kuhn - VARI-MASTER L 4E
Brand: Kuhn

Efficient Plowing Meets Great Performance Today’s crop operations need a versatile plow to meet their conditions ...

View In-Stock

Overview

Efficient Plowing Meets Great Performance

Today’s crop operations need a versatile plow to meet their conditions. With the Vari-Master L Series plows, operators have highly adaptable machines with heavy-duty components, a variety of options to choose from to suit their farming environment and can easily make adjustments from the cab.

KUHN Vari-Master L Series plows are available with 4 to 6 bottoms, both on-land and in-furrow are available to meet the needs of a variety of operations. Standard hydraulic working width adjustment quickly adapts the furrow from 14" to 22" to match working depth and soil characteristics. Traction-bolt (T) or Non-Stop Hydraulic (NSH) reset protects the plow from damage and quickly returns the bottoms to work. Like all KUHN plows, the Vari-Master L is equipped with the exclusive Triplex steel moldboards for unmatched durability in the field.

Specifications

Model

Vari-Master L Series

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Kuhn

Quantity

Manufacturer Qty

Hitch

Cat. 3 / 4N with cross-shaft

Working Width

12’’ - 22’’ (30 - 56 cm) hydraulically adjustable

Main Beam Dimension

5.9" x 5.9" (150 x 150 mm)

Standard Moldboards

L : Wide helicoidal

Underbeam Clearance

33.5’’ (85 cm) T, 31.5’’ (80 cm) NSH

Maximum Tractor Power

200 hp (150 kW)

Extendable By One Bottom

Extension Beam Dimension

5.9" x 5.9" (150 x 150 mm)

Point To Point Clearance

39.8’’ (101 cm)

Number Of Bottoms Per Side

Offset And Angling Adjustment

Hydraulic offset and mechanical angling

Adjustable Depth Wheel With Tire

690 x 320 mm standard

Hydraulic Rollover With 1 Cylinder

Standard

Required Tractor Hydraulic Connections

3 DA for rollover, working width, and offset

Approximate Machine Weight For T Version

4,202 lbs (1,906 kg)

Approximate Machine Weight For NSH Version

4,429 lbs (2,009 kg)

Gallery

equipment

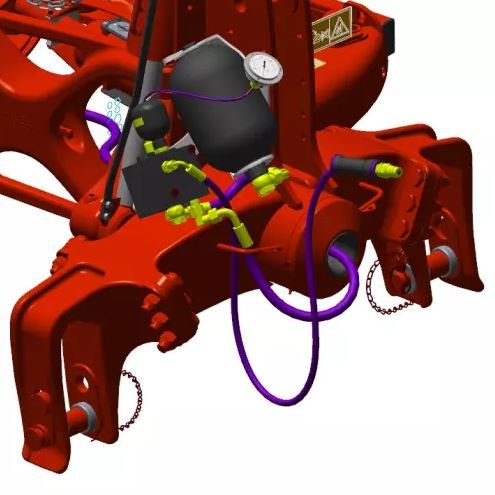

Maxibar System

The optional Maxibar system allows the top tripping pressure to be increased from 2,860 to 5,500 pounds, while maintaining flexibility of the system. Recommended for very hard soils such as dried clay.

Transport Wheel with Suspension

The plow can be transported on the road in complete safety thanks to a transport wheel, equipped with its own suspension system to protect the plow and tractor from transport shocks. The wheel can be swung into transport position in a single movement by pulling the locking pin.

literture

Name	Link
Brochure	Download

Documents

706451US MasterSeries_WEB.pdf
