Kuhn - CHALLENGER OL 7E

Name: Kuhn - CHALLENGER OL 7E
Brand: Kuhn

For High-Horsepower Tractors The Challenger is the plow for high-horsepower tractors and extremely difficult working conditions ...

View In-Stock

Overview

For High-Horsepower Tractors

The Challenger is the plow for high-horsepower tractors and extremely difficult working conditions.

More bottoms help you plow more acres in less time. The KUHN Challenger’s 8 ½” beam section provides durability during work and combined with its protection system (traction bolt or non-stop reset), ensure a long life with minimal down time. On-land plowing is standard to adapt to your large tractors with dual tires or wide tracks. With the Challenger, you can customize your plow leg protection to best your working conditions.

Specifications

Model

Challenger Series

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

Kuhn

Quantity

Manufacturer Qty

Hitch

Cat. 3 with cross-shaft

Tires

400/55-22.5

Working Width

14", 16", or 18" (35, 40, or 45 cm) delivered at 16" (40 cm)

Beam Dimensions

8.7" x 8.7" (220 x 220 mm)

On-land Hitch Kit

Standard

Standard Moldboards

L : Wide helicoidal

Underbeam Clearance

31.5" (80 cm)

Maximum Tractor Power

287 hp (211 kW)

Minimum Allowable Power

190 hp (139 kW)

Extendable By One Bottom

Yes, at front

Point To Point Clearance

40" (102 cm)

Number Of Bottoms Per Side

7 (4+3)

Offset And Angling Adjustment

Hydraulic

Hydraulic Rollover With 2 Cylinders

Standard

Approximate Machine Weight For T Version

8,289 lbs (3,760 kg)

Approximate Machine Weight For NSH Version

9,061 lbs (4,110 kg)

Two-wheel Undercarriage With Suspension For Transport

Standard

Sequencing Valve - Combines Lift And Rollover Functions

Standard

Gallery

equipment

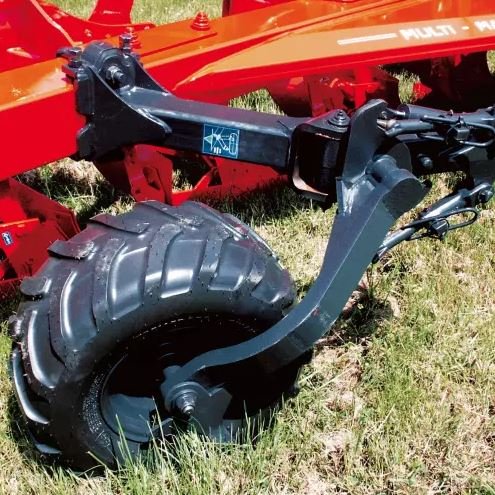

High Floating Depth Wheel with Shock Absorber

The shock absorber removes the shock of the wheel falling during rollover and also ensures the wheel is in the correct rearward inclined position as the plow is lowered back into work.
