Case IH AFS Connect Steiger 540

Specifications

Model	AFS Connect Steiger 540	Category Name	Tractors	Year	2023
Sale Type	New	Manufacturer	Case IH	Odometer	km
Engine Make	FPT	Engine Model	Cursor 13	3-Point Hitch	Category 4N
1000 Available	Optional	Engine Power Hp	535	Transmission Type	Powershift
Displacement Inches	787	Max.Engine Power Hp	605	Overall Width Inches	120
Number Of Forward Speeds	16	Classification Horsepower	540	Maximum Speed Forward Mph	25
WheelbaseTrackbase Inches	154	Tank Capacity Gallons (US)	310	Total Allowable Weight Ibs	56000
Implement Pump Flow Gallons (US) / Min	42	Price	Contact for price CAD

Description

370-692 HP
AFS Connect™ Steiger Series

The most powerful 4WD tractor in the industry — with record-setting fuel efficiency, best-in-class comfort, and the ability to remotely manage your farm, fleet and field information with AFS Connect. All new AFS Connect™ Steiger® tractors come with an AFS Connect technology subscription.

Quick Specs

Engine: 12.9 L Tier 4 B/Final
Engine Rated Horsepower: 535
Maximum Engine Horsepower: 605
PTO Power: 473

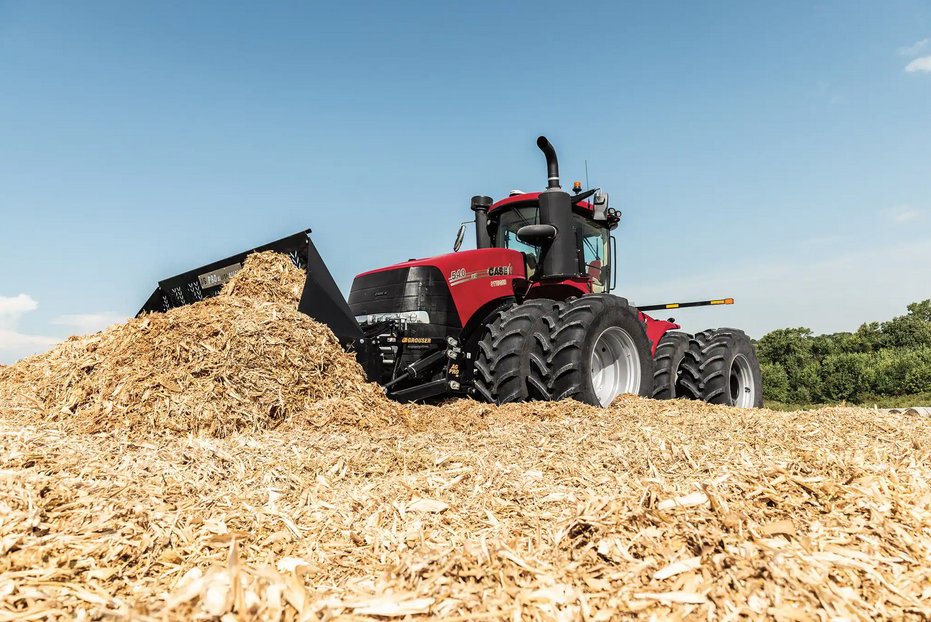

AFS Connect Steiger 540

Stay connected and comfortable in all conditions in the AFS Connect™ Steiger® 540. Customize it with either PowerDrive or CVXDrive™ transmission and your choice of Heavy-Duty Wheeled, Quadtrac® or scraper configurations with a 12.9L engine.

Available AFS Connect™ Steiger® 540 Configurations

Transmissions

PowerDrive - Standard
CVXDrive™ - Optional

Configurations

Heavy-Duty Wheeled
Quadtrac® Scraper
Quadtrac®
Heavy-Duty Wheeled Scraper
