Case IH TD103

Specifications

Model	TD103	Category Name	Agriculture	Year	2023
Sale Type	New	Manufacturer	Case IH	Odometer	km
Weight Ibs	2610	Disc Speed Rpm	2835	Knives Per Disc	2
Number Of Discs	8	Trailing Tire Size	27x9.5-15, 6PR	Cutting Width Ft/in	10 ft 4 in
PTO Rated Speed Rpm	540	Tractor Horsepower Hp	60	Transport Height Ft/in	5 ft 2 in
Transport Length Ft/in	15 ft 8 in	Hydraulic Circuits Required	Two (one single, one double-acting)	Position Relative To Tractor	Trailing, side-pull
Three-point Hitch Category, Or Drawbar	Pin to drawbar	Drive Between Discs, Bevel Or Spur Gear	Bevel gears in sealed modules	Breakaway Angle, Degrees, Or Description	Breakaway latch, spring-loaded
Mowing Arc, +/- From Horizontal - Degrees	Trailing wheels follow ground	Price	Contact for price CAD

Description

10’ 4” Cutting Width

Pull-Type Disc Mowers

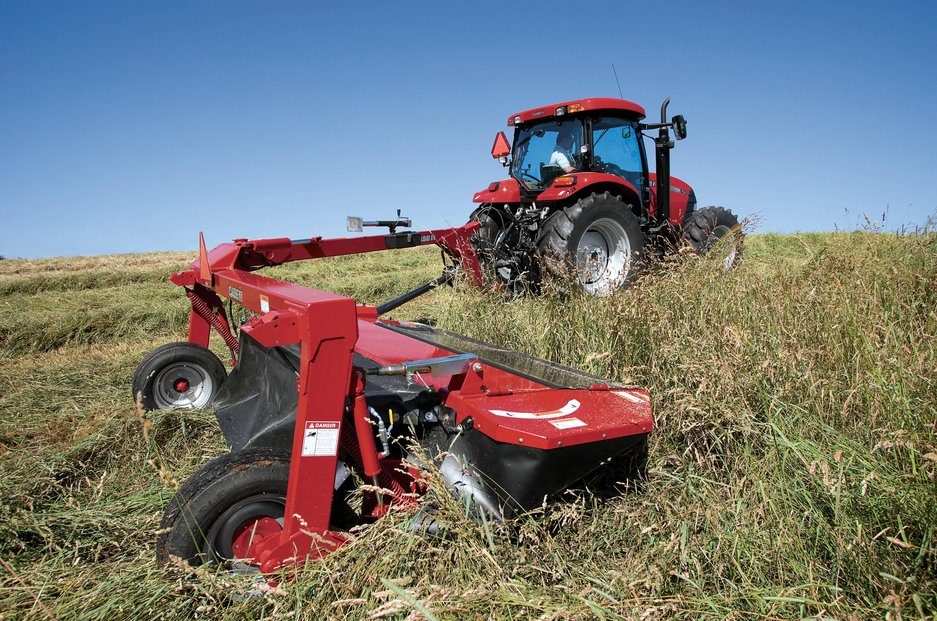

The Case IH TD103 pull-type disc mower features a smooth ride, clean cut, superior trailing ability, low transport height, and easy tractor hookup.

TD103

The Case IH TD103 pull-type disc mower features a smooth ride, clean cut, superior trailing ability and narrow transport width, plus easy tractor hookup using a simple clevis hitch.

Quick Specs

Cutting Width: 10 ft 4 in (3.16 m)
Number of Disks: 8
Number of Knives/Disk: 2
Input Speed: 540 rpm
