Salford BBI ENDURANCE TRUCK MOUNT
|
|
|
Specifications
|
Model |
BBI ENDURANCE TRUCK MOUNT
|
Category Name |
Agriculture
|
Year |
2024
|
|
Sale Type |
New
|
Manufacturer |
Salford
|
Price |
Contact for price CAD
|
|
|
|
Description
| The BBI Endurance litter spreader is the industry leader in cost-in-use – the ultimate measure of efficiency in the field. Ideal for livestock and poultry farmers or customer applicators, this chassis-mounted spreader offers speed, capacity, accuracy, and efficiency. The BBI Endurance is versatile and is designed to spread litter, manure, shavings, beet lime, and much more. Built with Salford’s spinner system, the Endurance excels at managing even the heaviest, wettest organic matter, while delivering the consistency and quality expected of a BBI Salford machine. The walking beam suspension can handle just about any terrain to ensure the most even, consistent spread pattern. |
|
|
|
FEATURES
|
Features
|

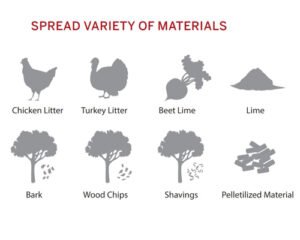

 Spread a variety of materials
Ideal for livestock and poultry farmers or custom applicators, the BBI Endurance will spread a variety of materials.
- Chicken litter
- Turkey litter
- Beet lime
- Lime
- Bark
- Wood chips
- Shavings
|
|

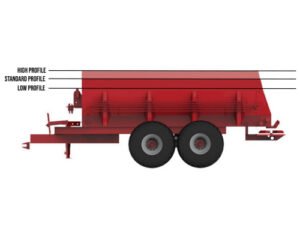

 Hopper Construction
LOW PROFILE HOPPER has a capacity of 16 cu/ft. struck level per linear ft., at 88 in. wide and 45.5 in high
STANDARD PROFILE HOPPER has a capacity of 20 cu/ft. struck level per linear foot, at 88 in. wide and 51.5 in. high
HIGH PROFILE HOPPER has a capacity of 23.5 cu/ft. struck level per linear foot, at 88 in. wide and 57.5 in. high
WIDE HOPPER has a capacity of 21 cu/ft. struck level per linear foot, at 96 in. wide and 52 in. high.
|
|

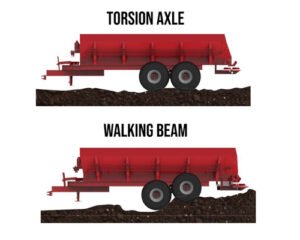

 Suspension
Option rich Endurance model offers Torsion Axle or Walking Beam suspension types available for a variety of tire sizes and hopper construction choices.
|
 Optional Lime Spreader Package
Now more than ever, the Endurance gives you greater return on investment through more choice on the farm, with heave duty lime packages available. Greater versatility for greater economic performance, season to season.

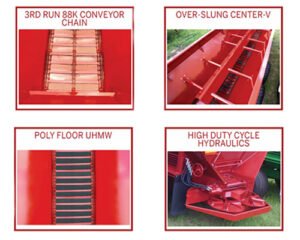

Close bar conveyor chain (Bars every other link)
Center-V
Single Tandem Gear Case
HIGH PERFORMANCE LIME SPREADER PACKAGE
3rd run 88k conveyor chain
|
|
|
PRODUCT SPECS
|
PRODUCT_SPECS
|
Series
|
BBI |
|
Size
|
210 cu-ft, 266 cu-ft, 322 cu-ft |
|
Product type
|
Chassis Mounted Spinner Spreaders |
|
Model Name Short
|
Endurance Mounted Spreader |
|
Model Name Long
|
ENDURANCE TRUCK 14' Mounted Spreader |
|
|
MATERIALS SPREAD
|
MATERIALS_SPREAD
|
Fertilizer
|
NO |
|
AG Lime
|
YES |
|
Litter
|
YES |
|
Organics
|
YES |
|
Seed
|
No |
|
Other
|
- |
|
Number of products applied, including optional hopper compartments
|
1 |
|
|
DETAILED EQUIPMENT SPECIFICATIONS
|
DETAILED_EQUIPMENT_SPECIFICATIONS
|
Paint
|
Standard: Red
Optional: Green
Optional: Gray
|
|
Hitch
|
N/A
|
|
Jack
|
N/A |
|
Tarp
|
Standard: No Tarp
Optional: Manual Roll Top Mesh Tarp Assembly – Front to Rear Tarp
Optional: Electric Roll Top Mesh Tarp Assembly – Front to Rear Tarp
|
|
Tail Light
|
Standard
|
|
Height
|
- |
|
Weight
|
- |
|
|
HOPPER
|
HOPPER
|
Hopper Size
|
Choice: 14′ LOW PROFILE Hopper 210 cu-ft (88″ wide x 45.5″ high)
Choice: 14′ STANDARD Hopper 266 cu-ft (88″ wide x 51.5″ high)
Choice: 14′ HIGH PROFILE Hopper 322 cu-ft (88″ wide x 57.5″ high)
|
|
Hopper Material
|
Standard: 10 Gauge Carbon Steel Hopper with 7 Gauge Rails & Floors
Optional: 7 Gauge Carbon Steel Hopper with 1/4″ Rails & Floors – Heavy Duty
Standard: Steel Floor
Optional: Poly Floor
|
|
Hopper Extensions
|
Standard: No Extension Brackets
Optional: Extension Brackets for 6″ boards
|
|
Hopper Gate Control
|
Dual rack-and-pinion gate (prevents jamming)
Standard: Manual Operated Gate
Optional: Hydraulic Gate (dual cylinders)
|
|
Hopper Ladder
|
Standard: No Hopper Ladder
Optional: Ladder for Carbon Steel Hopper
|
|
Hopper "Inverted V"
|
Standard: No Invertered V
Optional: Removeable Standard Invertered V
Optional: Removeable Overslung Invertered V
* The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.
|
|
Hopper Sight Window
|
Standard Sight Window
|
|
|
METERING AND DRIVE
|
METERING_AND_DRIVE
|
PTO Drive
|
N/A
|
|
Material Distribution Booms/Spinners/Air Line
|
28″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield
|
|
Application Swath Width
|
Lime and Litter: Up to 50 feet
|
|
Material Distribution Drive
|
Optional: “HY TORQUE Manifold
Two speed / Manually operated to handle HIGH Rates, Weight and Speeds”
|
|
Metering Drive
|
Standard: Direct Mount Pump
Optional: Remote Mount Hydraulic Pump
|
|
Primary Metering
|
Standard: 34″ conveyor with 88K heavy-duty chain, bars every other link
Optional: 3rd Run of 88K Chain – Bars are ever other link – Includes UHMW Rear Roller Support
|
|
Primary Metering Minimum Output Rate
|
- |
|
Primary Metering Maximum Output Rate
|
- |
|
Secondary Metering
|
N/A
|
|
Secondary Metering Minimum Output Rate
|
- |
|
Secondary Metering Maximum Output Rate
|
- |
|
Material Banding or Section Control
|
N/A
|
|
|
TIRES AND AXLES
|
TIRES_AND_AXLES
|
Axle
|
- |
|
Tire and Wheel Options
|
- |
|
|
MONITORING AND PRECISION CONTROL
|
MONITORING_AND_PRECISION_CONTROL
|
Monitors Options and Rate Control
|
- |
|
Weigh System Option
|
- |
|
|
