H&S S1225 11.22 Cu. Ft. Struck Per ASAE S324.2 Ground Drive Manure Spreader
|
|
|
Specifications
|
Model |
S1225
|
Category Name |
Agriculture
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
H&S
|
Apron Drive |
Adjustable Ratchet Drive
|
|
Inside Depth |
17″ (43 cm)
|
Inside Width |
22″ (56 cm)
|
Spindle Size |
1 ¼″ (3 cm)
|
|
Upper Beater |
Fine Spread Pan
|
Inside Length |
6′ (183 cm)
|
Overall Length |
9′ 1″ (277 cm)
|
|
Weight W/Tires |
350 lbs. (159 kg)
|
Box Construction |
Powder Coated Steel
|
Main Apron Chain |
55
|
|
Number Of Paddles |
8
|
Diameter Of Beater |
20″ (51 cm)
|
Floor Construction |
Poly Bonded
|
|
Standard Tire Size |
6.00 x 12
|
Top Of Flare Width |
28 ½″ (73 cm)
|
Capacity - Old Rating |
25 bu
|
|
Overall Width W/Standard Tires |
42″ (107 cm)
|
Overall Loading Height-Top Of Side |
30″ (76 cm)
|
Capacity Cu. Ft. Heaped Per ASAE S324.2 |
14.27
|
|
Capacity Cu. Ft. Struck Level Per ASAE S324.2 |
11.22
|
Price |
Contact for price CAD
|
|
|
|
Description
Features
- All 1200 series models feature durable powder coated paint.
- A bonded poly floor reduces main apron drag and the power needed to move the load.
- 6.00 x 12 deep lug traction tires.
- Heavy-duty, 8-paddle 20″ beater assembly.
- The beater is chain driven.
- The #55 main apron is driven by a simple adjustable 2-speed ratchet drive mechanism.
- Separate apron engage/disengage lever and beater engage/disengage lever.
|
|
|
|
OPTIONS
|
Options

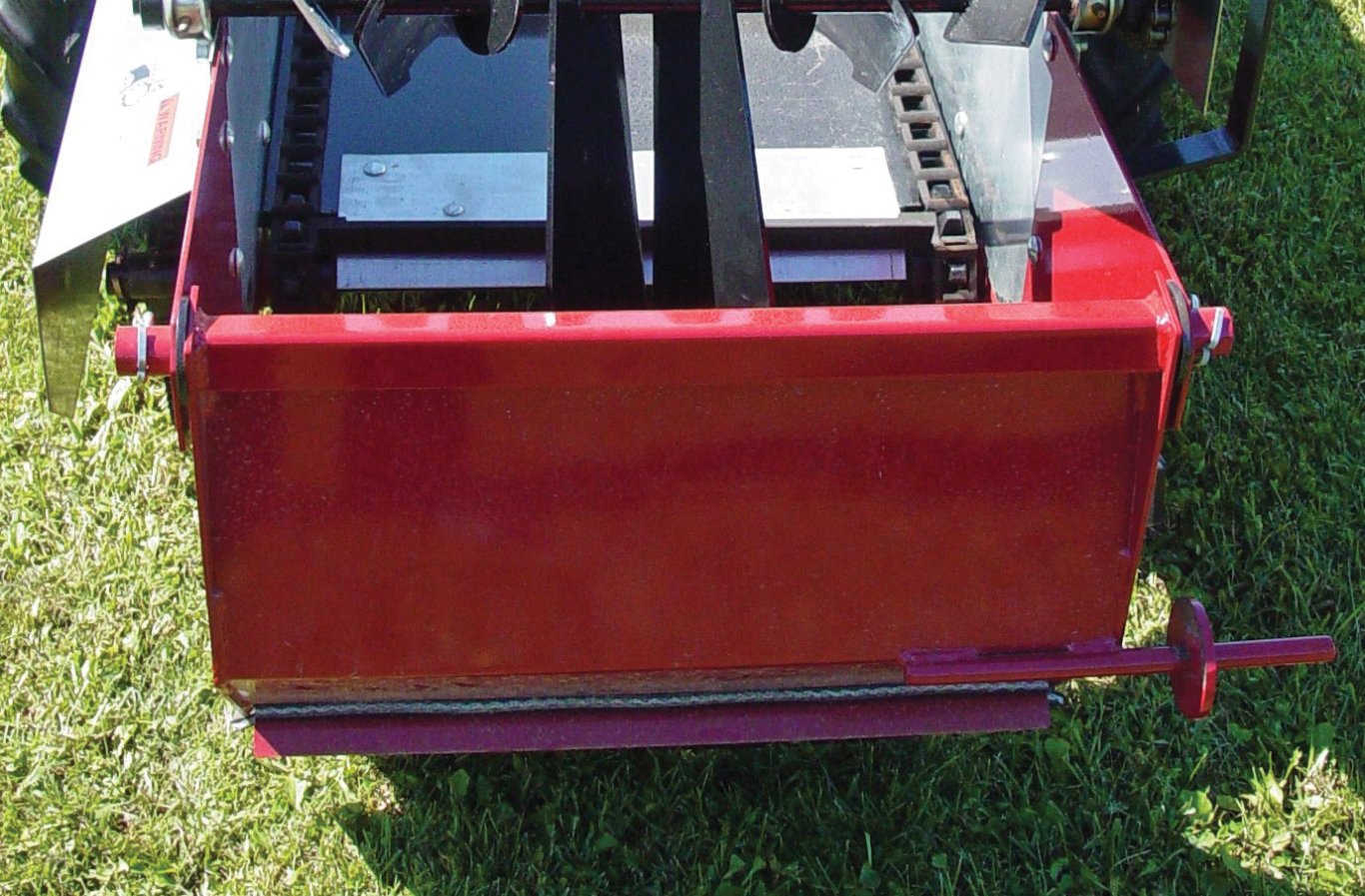

 Rear Pan
The optional rear pan helps create a finer spread pattern.
|
|
|
