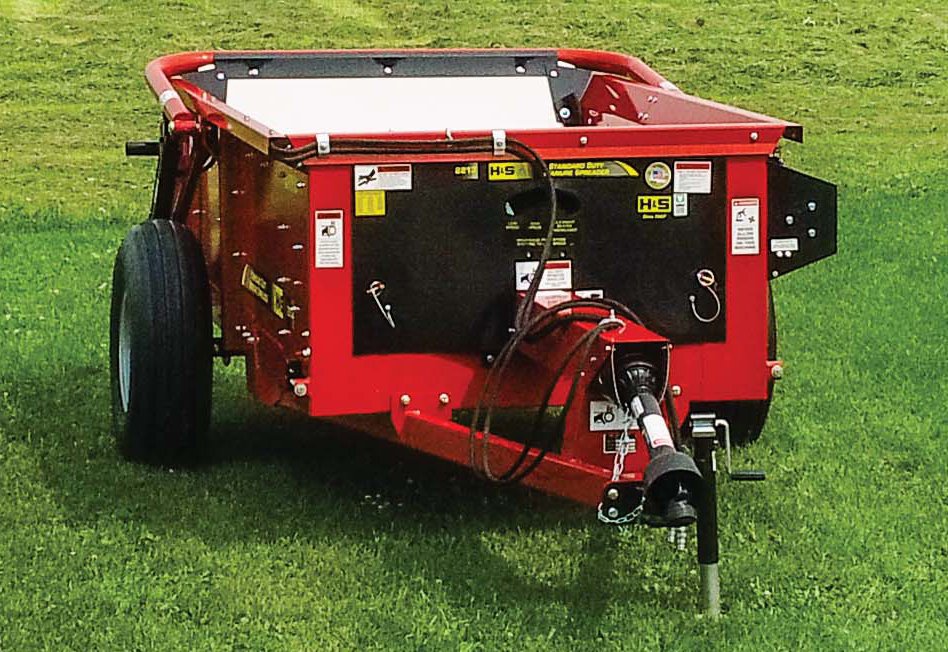

H&S S2217 91.63 Cu. Ft. Struck Per ASAE S324.2 Standard Duty Manure Spreader
|
|
|
Specifications
|
Model |
S2217
|
Category Name |
Agriculture
|
Year |
2025
|
|
Sale Type |
New
|
Manufacturer |
H&S
|
Options |
Fine Spread Pan – Hyd. Endgate
|
|
Apron Drive |
Gearbox, 2-Speed PTO
|
Inside Depth |
25 ¾″ (65 cm)
|
Inside Width |
54″ (137 cm)
|
|
Spindle Size |
2″ (5 cm)
|
Upper Beater |
Optional
|
Inside Length |
11′ 1″ (338 cm)
|
|
Overall Length |
17′ 8″ (538 cm)
|
Weight W/Tires |
2,030 lbs. (921 kg)
|
Swing Away Jack |
Standard
|
|
Box Construction |
Powder Coated Steel
|
Main Apron Chain |
T-Rod
|
Number Of Paddles |
8
|
|
Diameter Of Beater |
27″ (68 cm)
|
Floor Construction |
Poly Bonded
|
Standard Tire Size |
10R x 22.5
|
|
Top Of Flare Width |
63 ½″ (161 cm)
|
Capacity - Old Rating |
175 bu
|
Overall Height W/Hyd. Endgate |
49″ (125 cm)
|
|
Overall Width W/Standard Tires |
83 ½″ (212 cm)
|
Overall Loading Height-Top Of Side |
45 ½″ (116 cm)
|
Capacity Cu. Ft. Heaped Per ASAE S324.2 |
152.13
|
|
Capacity Cu. Ft. Struck Level Per ASAE S324.2 |
45.11
|
Price |
Contact for price CAD
|
|
|
|
|
Description
Features
- All welded heavy-duty A-frame hitch assembly and full-length unitized main frame
- The plastic-coated plywood floor allows for considerably less torque to move a heavy load.
- The drive utilizes the patented H&S 2-speed gearbox. Shifting is all done in the enclosed two speed/beater shutoff gearbox.
- A heavy-duty beater assembly ensures aggressive shredding action with wide and even spread patterns.
- Spreader box sides are constructed of powder-coated steel.
- Special cast steel alloy apron idler slides are used instead of idler sprockets, making for years of dependable service.
- Adjustment for the main apron is easily made by simply loosening the two side bolts and drawing up the long bolt.
- PTO Apron Low Speed/540 RPMs: 4′ 9″ per minute.
- PTO Apron High Speed/540 RPMs: 8′ 9″ per minute
- A front splash guard is standard equipment.
- Greaseable bearings
|
|
|
|
OPTIONS
|
Options

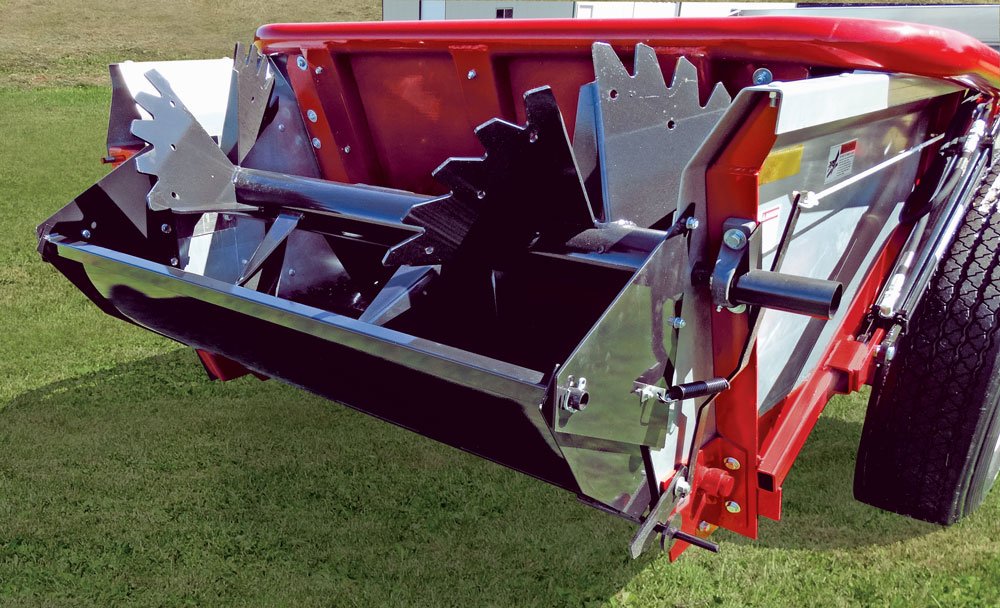

 Rear Trip Pan
The heavy-duty beater assembly ensures aggressive shredding action with wide, even spread patterns.
|
 Hydraulic Endgate
The hydraulic endgate is a nice option for semi-liquid material.
|
 Top Beater
|
10,100# Safety Chain
|
|
|
