Ventrac RV602 Vacuum Collection System

Specifications

Model	RV602	Category Name	Lawn / Garden	Year	2025
Sale Type	New	Manufacturer	Ventrac	Engine Size	603 cc
Length	40 in	Weight	525 lbs	Fuel Type	Gas
Engine RPM	3600	Horsepower	10 hp	Engine Type	Single Cylinder, Horizontal Shaft
Sales Model	RV602	Product Type	Attachment	Lifiting Time	5 seconds
Lift Capacity	300 lbs	Lowering Time	4 secs	Max. Capacity	16 ft3
Overall Width	65 in	Lifting Height	5 ft (60 inches)	Overall Height	53 in
Full Description	RV, RV602 Collection Vacuum	Width With Tractor	66 in	Engine Manufacturer	B&S Vanguard
Length With Tractor No Mower	104 in	Recommended Capacity (for Best Resul	13 ft3	Price	Contact for price CAD

Description

RV602 Vacuum Collection System

The Ventrac RV602 VACUUM COLLECTION SYSTEM* is for grass and leaf collection, and it consists of three primary components:

1- The Bin Assembly - mounts to the rear of 4000 series tractors.
2- The Suction/Blower System - powered by a 10HP Vanguard engine with electric start for efficient pickup and superior performance
3- High Lift Mechanism - hydraulically raise the collection bin up to five feet and dump to unload the contents into a garbage bin or trailer.

The vac requires a docking station when dismounted. A storage stand with caster wheels is used when it is to be parked or moved around on a level floor. When loaded onto truck, a rigid base assembly is anchored to the floor that holds the vac firmly for transport.

Other Features include:

All steel construction
Hydraulic lift and dump
Electric start engine
Collection boot is quickly and easily attached to the mower deck
Handle on hose and hose end for ease of vacuuming flower beds, etc.
Hose clamp for attaching hose to collection boot is an over-center clamp for ease of connecting
Storage stands, complete with caster wheels, for ease of attaching or storage

*For optimal performance, use with a 60" deck.

LITERATURE

Download Owners Manual

Download

Specifications Sheet

Download

Download Parts Manual

Download

VENTRAC BENEFITS

High Lift

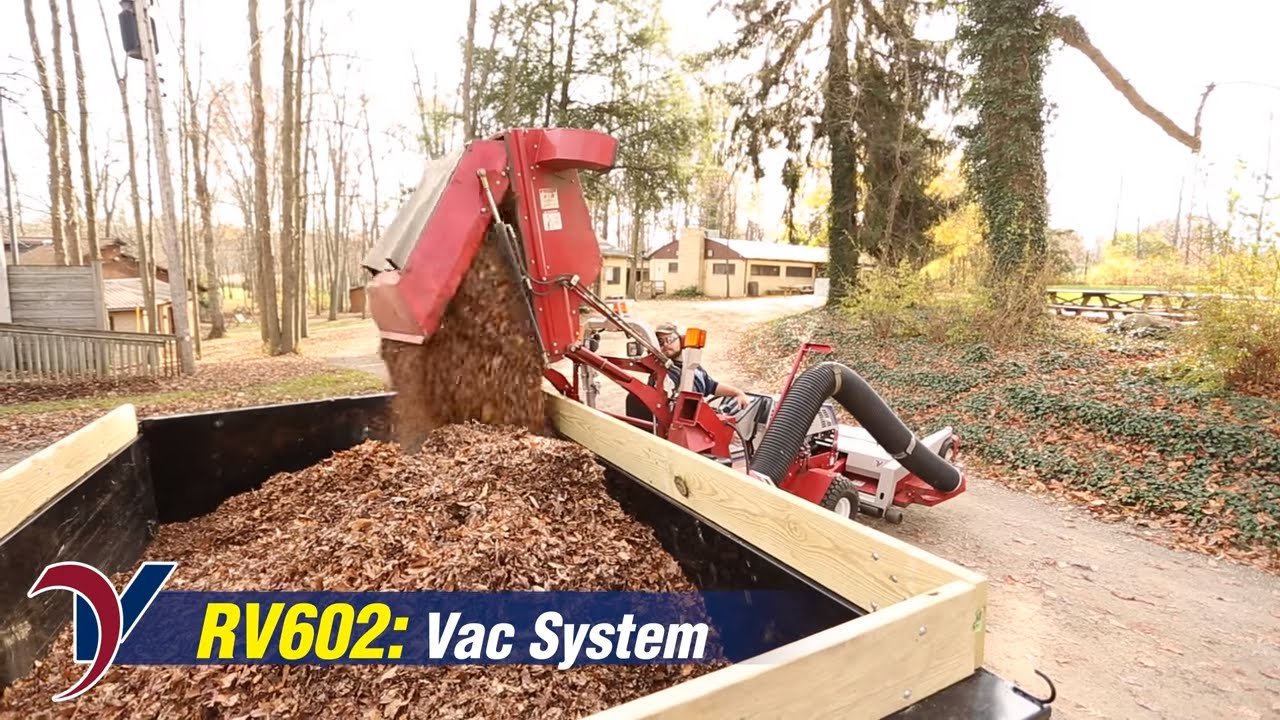

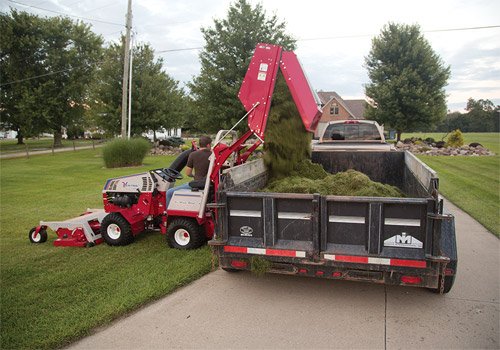

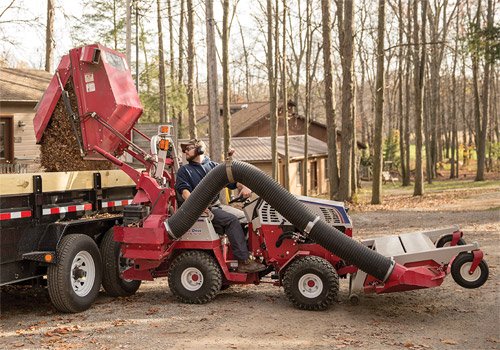

The RV602 has a debris containment bin that hydraulically raises up to five feet to easily place collected materials into a dump trailer, pickup bed or on top of the compost pile.

Leave Nothing Behind

The Vacuum Collection System is the professional choice for quickly clearing the fall leaves that blanket the yard.

Easy Disconnect

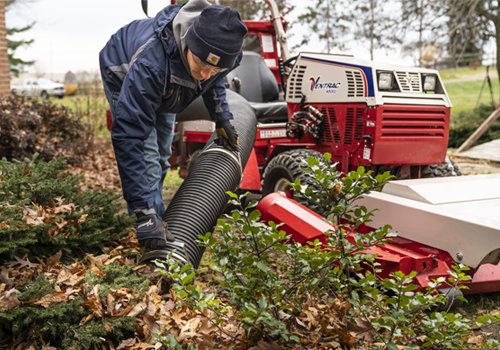

A quick disconnect vacuum hose makes cleaning flower beds, hedges, steps and other un-drivable areas easy.

Collect Mulched Grass & Leaves
