ID # 25080146

Kuhn - VT 180/1100 Series

Call for Price
Kuhn VT 180/1100 Series A Large-Capacity Mixer for Moderate-Duty Feeding Cycles

For producers with more moderate feeding cycles, but still require a large-capacity mixer, the VT 180 & 1100 models are an ideal choice. These two models range in capacity from 800 to 1,100 cubic feet, and are available as a truck or trailer configuration."

KUHN Knight VT 180 & VT 1100 twin-auger Vertical Maxx® mixers are ideal for large dairy and beef producers who want to place quality rations in front of their animals. The VT models are rugged, dependable, large-capacity mixers designed for moderate-use cycles of around 4 to 5 hours per day.

These mixers feature a proven mixer tub and auger design, ensuring a quality mix is delivered, every load. The VT 180 and VT 1100 mixers are a great choice for operations looking to minimize feeding time and are competitively priced for moderate feeding situations. Multiple door location options for all models offer versatility for different feeding situations and provide fast, consistent discharge. The VT Series mixers are available with a single- or tandem-axle trailer, as well as a truck mount option, to match each customer’s specific needs.


VT 180/1100 Series
Sale Type
 Overall Height 110" (279 cm) 125" (318 cm) 119" (302 cm) 134" (340 cm)
 Overall Height - With Hay Retention Ring     125" (318 cm) 140" (356 cm)
 Overall Height - 8" (20 cm) Belt Extensions 118" (300 cm) 133" (338 cm) 127" (323 cm) 142" (361 cm)
 Overall Height - Single Axle - without Extensions / with Extensions 107" (272 cm) / 115" (292 cm) 122" (310 cm) / 130" (330 cm)
 Overall Height - Hay Retention Ring - Inline Dual Wheel Tandem / Oscillating Tandem 113" (287 cm) / 116" (295 cm) 128" (325 cm) / 131" (333 cm)
 Overall Length 328" (833 cm) | 295" (749 cm) 330" (838 cm) | 297" (754 cm) 262" (665 cm) | 234" (594 cm) 264" (671 cm) | 239" (607 cm)
 Mixing Chamber Length 234" (594 cm) 239" (607 cm) 234" (594 cm) 239" (607 cm)
 Overall Width - Mixer Only (No Discharge) 117" (297 cm) 119" (302 cm) 117" (297 cm) 119" (302 cm)
 Tread Width 105" (267 cm) 105" (267 cm) 100" (254 cm) 100" (254 cm)


equipment Hay-Retention Ring

 The steel hay-retention ring helps contain large round bales during processing and reduces hay spillage more effectively compared to similar options on competitive models. Capacity Belt Extension

 A belt extension, added to the top of the mixing tub, increases capacity by about 10%. It also improves hay containment, and rubber construction is durable and pliable for long life. Flat Chain & Slat Front Conveyor – Front

 The flat, front conveyor option is simple to operate and offers convenient feeding from either side of the machine on trailer models. Hydraulic side shift is standard and gives you the ability to shift the conveyor a total of 16” from side to side for accurate feed placement.

Either or both ends of the flat conveyor can be fitted with a hanging belt with magnets to catch small metal fragments. The hanging belt also helps to even feed flow off the end of the conveyor. A fixed tip-off, with magnets, can be added to catch small metal fragments present in the feed and help prevent hardware disease. Side Belt Conveyor

 An optional belt conveyor can be added for easy and consistent placement of feed at varying heights including the filling of mobile feed carts. The belt offers quiet operation and consistent feed flow. Belt conveyors are able to run steeper versus a chain and slat because you can run the conveyor faster, depending on the materials. The low profile sides allow the conveyor to fold up tighter to the machine for a more narrow transport width. An optional deflector helps with placement of the feed and provides an option for magnets. Scale Systems

  Different scale brands, models and option are available for all types of operations, ranging from basic to high-end feed-tracking programs. Optional remote indicators are available for placement that will allow easier viewing. Incline Chain & Slat Conveyor – Front

 The incline conveyor option is available with the choice of either right or left side unloading on trailer models. This option allows the flexibility for both floor feeding and feeding into bunks of various heights where a longer or higher reach is needed for precise feed placement. A fixed tip-off, with magnets, can be added. The magnets work to catch small metal fragments present in the feed and help prevent hardware disease. Slide Tray

 The side-discharge slide tray on the VSL & VT models has simple hydraulic controls and helps guide the feed further away from the tire path. Discharge magnets help catch metal fragments to prevent hardware. Side Chain & Slat Conveyor

 Optional side conveyors provide the ultimate in durability and long life. Heavy-duty components ensure reliable service, even in extreme use conditions. Multiple conveyor length options offer unmatched flexibility to tailor the discharge to your needs. A fixed tip-off with magnets can be added to catch small metal fragments present in the feed and help prevent hardware disease. Viewing Platform

 All models feature a standard observation ladder to easily view the inside of the mixing chamber. Front door, trailer models also offer an optional viewing platform for a convenient, comfortable place to check mixing progress. High-Wear Components

 Optional DuraMix® hardened auger flighting provides enhanced wear resistance and longer auger life in the toughest conditions. The flighting is made of high-carbon steel throughout, with hardened outer edges for unmatched durability. Optional 30”, stainless steel side and baffle liners provide extra protection in the lower part of the chamber where most wear occurs.

your benefits

Superior Feed Movement

Kuhn VT 180/1100 Series Cone-Style Auger & Kicker Design

New cone-style augers provide superior feed movement for faster, more complete mixing and processing. The smooth, continuous auger flighting (1) creates a rolling feed action that improves mixing. The top cover of the auger has a steep angle to aid in bale movement when processing round bales and to prevent feed from sitting on top of the auger between mixes. The straight bolt-on kicker (2) provides a fast and even discharge. Each lead flight is equipped with a cast iron scraper (3) that pulls material away from the tub walls into the auger for a better overall mix. Both the kicker and scraper are bolt-on attachments, making replacement very easy to save you precious time.

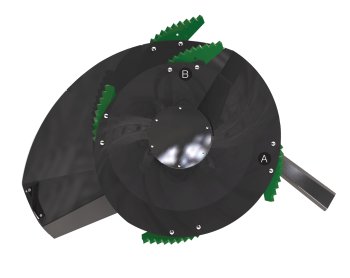

Kuhn VT 180/1100 Series Hardened Knives

 Large, 15” or 20”, replaceable hay cutting knives are available to best handle the material to be processed. The knives have two positions to adjust the aggressiveness of the knife angle. Versatility of knife length, angle and position allow for an optimal setting with a wide variety of ration ingredients.

// A: Knife set in for slicing and cutting

// B: Knife set out for grabbing and tearing

Kuhn VT 180/1100 Series Efficient Mixing Chamber

Straighter sides, smoother curves and steeper baffles help promote a fast, complete mix for a fluffy, palatable ration. No preprocessing or special loading is required for round or square bales making it easy to load and use. Faster auger speeds also provide quicker, more complete cleanout.

Kuhn VT 180/1100 Series Adjustable Hay Stops

The adjustable hay stops provide flexibility in processing to provide you with the cut length necessary to reach the optimal nutritional value you’re striving for. This adjustability makes hay processing more efficient and helps minimize overprocessing.

Kuhn VT 180/1100 Series Large Unloading Doors

 For unmatched feed flow, these mixers feature the largest discharge door available in the industry. The discharge linkage allows for rapid opening and closing of the door.

Simple, Dependable Drive
Kuhn VT 180/1100 Series
Patented 2-Speed, Split Drive

The patented drive system on the VT 180 and 1100 mixers consists of a 2-speed, split-drive gearbox, two planetary gearboxes and two torque-disconnect PTOs. This system provides reliable performance and long service life with a simple and quiet design. Truck and trailer models only.

The 2-speed, split-drive gearbox provides the flexibility of high and low speeds without adding another gearbox. It allows for a lower horsepower and easier starting speed (28 rpm in low) while also having a high speed for fast mixing and more complete cleanout (41 rpm in high). The gearbox can be shifted manually on the machine or with an in-cab electric shift option for operator convenience.

Kuhn VT 180/1100 Series Torque-Disconnect PTOs

 Two automatically resetting torque-disconnect PTOs provide independent protection for each planetary. This helps guard against obstructions encountered by each individual auger, ensuring reliable service and longer life.


Kuhn VT 180/1100 Series Heavy-Duty Gearboxes

The twin planetaries are designed to provide dependable performance and long life. The drive systems allow the use of single-stage planetaries, which produces far less heat for easier cooling.

VTC_RemovablePlanetaryMount.jpg Easy Accessibility

 Easily pull the planetary from the top of the mixer for improved and easier service. This easy accessibility is especially helpful for truck mount models as it does not require dismounting the mixer from the chassis.The image shown is from a KUHN Knight VTC model.

Kuhn VT 180/1100 Series Truck Models

 On truck models, they hydrostatic drive allows control of the full range of auger speeds, from within the cab, without stopping to shift. It is available in FEPTO or REPTO drive configurations. This drive uses the same proven gearbox and driveline setup as the trailer models to ensure drive components are protected from damage.

Multiple Configurations

Kuhn VT 180/1100 Series Multiple Door Options

Various door configuration options on trailed and stationary models offer flexibility to fit a variety of feeding situations. The large discharge openings provide fast, even unloading from front, side and rear door locations for maximum efficiency.

Choose a front door for clear visibility of the material coming out of the door. The front cross conveyor uses rugged components for unmatched dependability. A heavy-duty, steel floor on the VT 132-168, along with the heaviest conveyor chain in the industry, helps ensure long life and less down time. New discharge options provide the ultimate in versatility to match most feeding situations.

Trailer models offer doors on either or both sides, while truck models offer a left-side door. The large openings allow fast unloading with comparable feed flow out of one door that many competitive machines get with two.

A rear commodity door is available. The large opening provides fast discharge, even with high-roughage premixes. A discharge tray is included on truck models to direct material flow for clean, accurate feed placement.

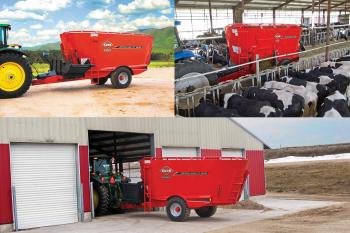

Kuhn VT 180/1100 Series Trailer or Truck Configurations

To suit your operation’s needs, KUHN VT 180 and 1100 mixers are available in a trailer or truck-mounted configuration.

Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not being used for feeding.

Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again.
