Overview

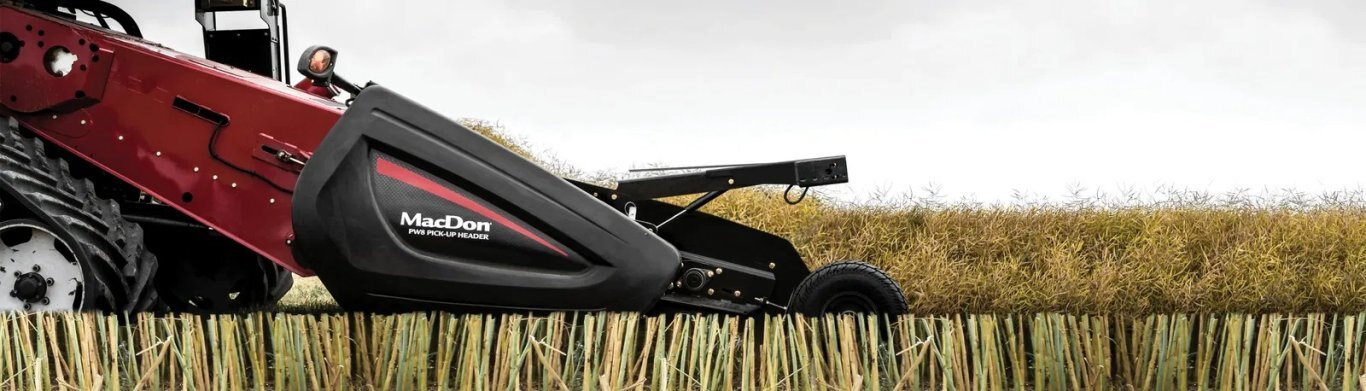

PW SERIES

Set It and Forget It.

Our engineers worked hard to make the PW8 as user friendly as possible, from easy installation to time saving innovations, it all adds up to harvesting performance you can count on.

*Some products and/or options may not be available in all markets. See your MacDon Dealer for availability. Some of the images used may be of a different model with the same/similar feature.
Specifications
Model
PW Series
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
MacDon
features

Serious Pick-Up Capacity in any Crop Condition

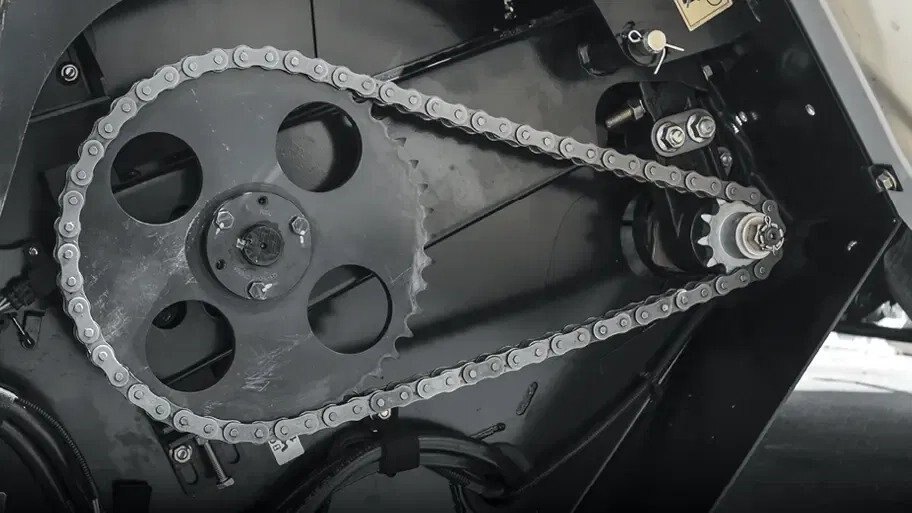

A strengthened auger tube and robust chain drive allow the PW8 to easily handle high capacity loads. Both draper decks are run independently by hydraulic motors. The drapers are kept on track by MacDon’s patented V-guide roller groove tracking system. Together, these systems allow the PW8 to process the heaviest swaths with ease.

On-the-go control

The PW8 works with the combine’s Automatic Header Height and Lateral Tilt System.

Simple Adjustments

A simple draper tensioning system, easy to see draper tension indicators, and common all metric hardware allow adjustments to be made in a flash.

Drop-and-Go Float Performance

Our simple and effective spring-over-shock floatation system provides a ground following 45.7 cm (18”) of wheel float, and requires no adjustment during operation or lockout during transport. Float indicator numbers are clearly visible on both sides of the machine, letting you know the PW8 is operating at an optimal float position.

Great Seed Retention

Tight draper connectors and seals, along with a deep overlap of front and rear draper decks ensure that more seed is making its way into the combine for better yields.

Easy Maintenance

Five 100 hour grease points make for quick and easy maintenance of this machine.

Brand Compatibility

Switch combine brands with MacDon PW8 completion packages. These packages make it easy to switch between combine brands which increases resale value down the road.

* Some products and/or options may not be available in all markets. See your MacDon Dealer for availability.
advantages
  • • Excellent Seed Retention - Tight Draper Connectors and Seals
  • • Simple Adjustments
  • • Drop & Go Float Performance
  • • MacDon's Patented V-guide Roller Groove Tracking System
pw8 pick-up header specifications
Weight 1452 kg (3200 lbs)

Overall Width

5.66 m (18’ 6”)

Effective Picking Width

4.52 m (14’ 8”) between divider lugs

Overall Depth

246 cm (96.9”)

Auger Diameter

61 cm (24”)

Auger Fingers

Factory set for 18, qty to match specific combine feeder house

Auger Speed

0-200 rpm (Depending on combine model)

Auger Drive Chain

Endless # 80 chain

Drive Shaft

Heavy duty, 1.375" diameter, fully shielded with built-in clutch

Draper Belts

Each deck consists of (4) 1125 mm (44.3”) wide drapers joined and equipped with patented tracking V-guide on right end

Draper Speed

0 – 163 m/min (535 ft/min), depending on combine model

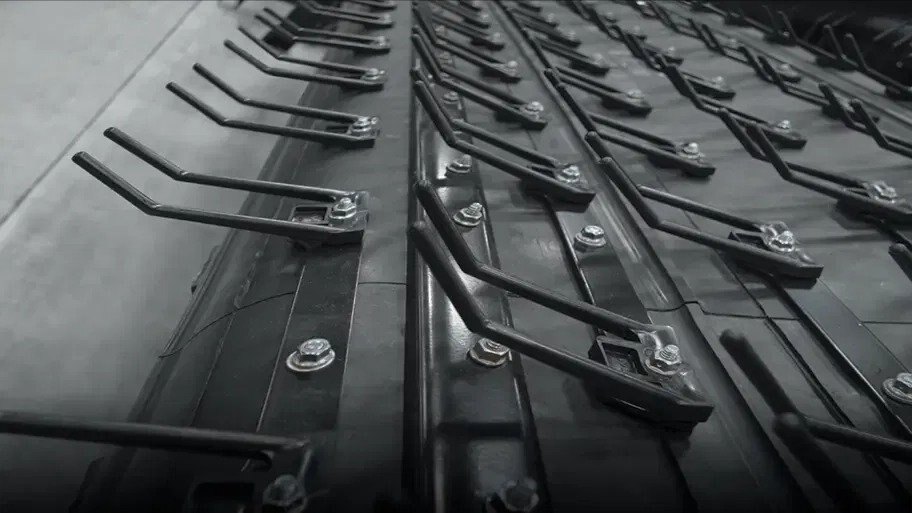

Draper Fingers

5" Plastic

Draper Rollers

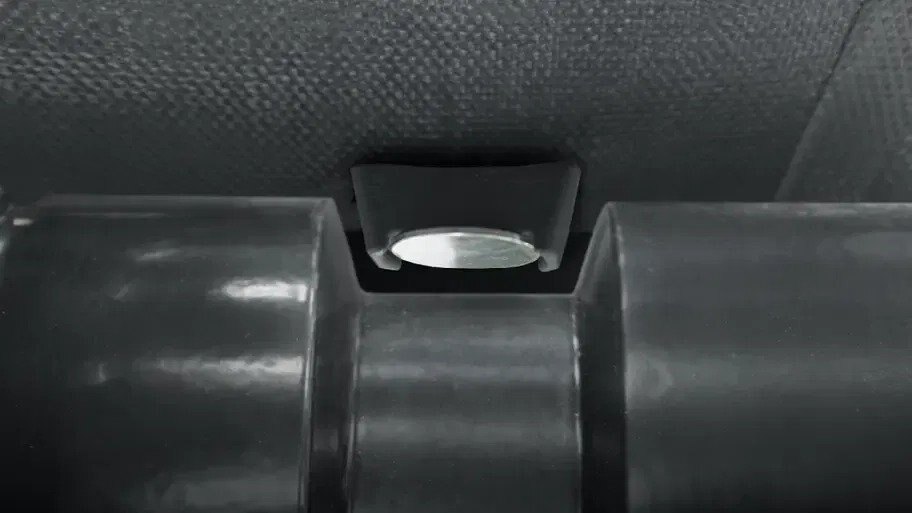

Large 127 mm (5”) drive and 102 mm (4”) idler roller (same on both decks) with V-Groove on the right-hand side to ensure proper draper tracking and reduced slippage

Draper Drive

Two, 5.9 CID (97 cc) hydraulic motors

Gauge Wheels

18.5/8.50-8, adjustable height

Header Float

Spring-Over-Shock System requires no adjustment or lock-out for transport and provides 18 inches of wheel float
