Salford MAGNASPREAD PLUS+ SPINNER SPREADER

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Build for efficiency and performance, Salford’s BBI MagnaSpread Plus+ combines the use of one spreader to maximize both fertilizer and lime application widths, saving you time and money. This machine has the capacity to spread dry fertilizer up to 120’ and lime up to 60’ – all with one machine. The new MagnaSpread Plus+ builds on the industry leading performance of Salford’s BBI MagnaSpread by adding new technology to maximize your investment.

Specifications

Model

MAGNASPREAD PLUS+ SPINNER SPREADER

Category Name

Agriculture

Year

2024

Sale Type

New

Manufacturer

Salford

features

12' SINGLE AXLE MAGNASPREAD PLUS+ STANDARD FEATURES

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 1 set each of fertilizer and ag lime flow dividers and fins
• 12′ Stainless steel hopper with access ladder (Hopper Volume 264 cu-ft struck)
• Over-slung center ‘V’
• 30″ belt-over-bar conveyor
• 90″ to 120″ adjustable axles with 380/90R46 tires
• Heavy-duty tongue jack
• Spreader pan test kit

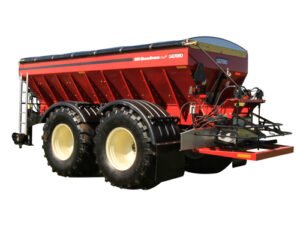

20' TANDEM AXLE MAGNASPREAD PLUS+ STANDARD FEATURES

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 1 set each of fertilizer and ag lime flow dividers and fins
• 20′ Stainless steel hopper with access ladder (Hopper Volume 440 cu-ft struck)
• Over-slung center ‘V’
• 30″ belt-over-bar conveyor
• 20-Ton walking beam suspension with 800/65R32 tires
• Heavy-duty tongue jack and Category 4 Articulating Hitch
• Spreader pan test kit

Salford MAGNASPREAD PLUS+ SPINNER SPREADER SPREAD FERTILIZER 120FT. & LIME 60FT. WITH ONE MACHINE

Salford BBI spreaders are designed to save time and cost of application by achieving industry leading application widths. In order to maximize the application width with each material the MagnaSpread Plus requires a spinner and flow divider change over. Switch from fertilizer application to lime application with two people in under 30 minutes! *Maximum application width varies by material quality.

Salford MAGNASPREAD PLUS+ SPINNER SPREADER INDUSTRY LEADING APPLICATION TECHNOLOGY

The MagnaSpread Plus uses tried and tested hopper designs, the high-clearance single axle 12 foot hopper or the tandem axle 20 foot hopper, equipped with Salford’s latest advancements in application technology. Engineering improvements make this spreader even more accurate and easy to set. The axle configurations help producers who need the widest application window or those looking for the maximum pay load.

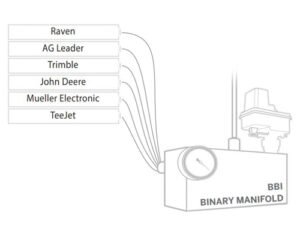

Salford MAGNASPREAD PLUS+ SPINNER SPREADER BINARY MANIFOLD OPTION

Patented hydraulics control system – connectivity to all major precision agriculture technology brands

Variable Rate ready ISOBUS compatibility to most major precision control systems

Multiple factory-installed systems available

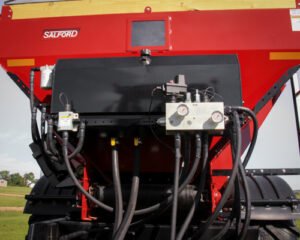

Salford MAGNASPREAD PLUS+ SPINNER SPREADER HYDRAULIC FEATURES & OPTIONS

High quality JIC fittings & true hydraulic pipe

GR Valve – increasing chain speed

Hy-Torque manifold – increasing available spinner torque

product specs

Series	BBI	BBI
Size	264 cu-ft	440 cu-ft
Product type	Pull Type Spinner Spreaders	Pull Type Spinner Spreaders
Model Name Short	MagnaSpread Plus	MagnaSpread Plus
Model Name Long	MAGNASPREAD PLUS+ 12' Single Axle Spreader	MAGNASPREAD PLUS+ 20' Tandem Axle Spreader

materials spread

Fertilizer	YES	YES
AG Lime	YES	YES
Litter	NO	NO
Organics	NO	NO
Seed	NO	NO
Other	-	-
Number of products applied, including optional hopper compartments	1	1

detailed equipment specifications

Paint	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)
Hitch	Standard: Cast Hitch for Pull Type Spreaders – includes Pintle and Clevis Hitch Optional: Articulating Hitch	Standard: Cast Hitch for Pull Type Spreaders – includes Pintle and Clevis Hitch Optional: Articulating Hitch
Jack	Heavy-duty tongue jack	Heavy-duty tongue jack
Tarp	Standard: No Tarp Option: Tarp for for Standard or High Profile Hoppers Stainless End Caps	Standard: No Tarp Option: Tarp for for Standard or High Profile Hoppers Stainless End Caps
Tail Light	Rear Tail Lights with Turn Signal, Side Markers	Rear Tail Lights with Turn Signal, Side Markers
Height	-	-
Weight	-	-

hopper

Hopper Size	12′ High Profile Hopper 264 cu-ft	20′ 96″ Wide Hopper 440 cu-ft
Hopper Material	Standard: 409 Stainless Steel, Painted Optional: 304 Stainless Steel	Standard: 409 Stainless Steel, Painted Optional: 304 Stainless Steel
Hopper Extensions	Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards	Standard: No Extension BracketsOptional: 6″ extension brackets Optional: Extension Brackets for 6″ boards
Hopper Gate Control	Jack Operated Gate	Jack Operated Gate
Hopper Ladder	-	-
Hopper "Inverted V"	Standard: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.	Standard: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.
Hopper Sight Window	Standard Sight Window	Yes

metering and drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline Choice: Tractor Supplied Hydraulics for MagnaSpread* *Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline Choice: Tractor Supplied Hydraulics for MagnaSpread* *Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.

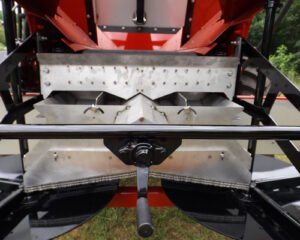

Material Distribution Booms/Spinners/Air Line	30″ dished spinner design for precision coverage Stainless steel spinners, fins and spread shield	30″ dished spinner design for precision coverage Stainless steel spinners, fins and spread shield
Application Swath Width	Lime: Up to 50 feet Fert: Up to 120 feet	Lime: Up to 50 feet Fert: Up to 120 feet
Material Distribution Drive	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics
Metering Drive	Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve	Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve
Primary Metering	Standard: 30″ Belt-Over-Bar Chain	Standard: 30″ Belt-Over-Bar Chain
Primary Metering Minimum Output Rate	-	-
Primary Metering Maximum Output Rate	-	-
Secondary Metering	N/A	N/A
Secondary Metering Minimum Output Rate	-	-
Secondary Metering Maximum Output Rate	-	-
Material Banding or Section Control	N/A	N/A

tires and axles

Axle	-
Tire and Wheel Options	-

monitoring and precision control

Monitors Options and Rate Control	-
Weigh System Option	-

literature

Name	Link
BBI Literature	Download
