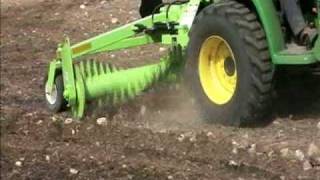

Schulte SMR-800 Rock Windrower

Windrows 2” to 25” rocks with ease, forming them into neat uniform rows Power is supplied to the rock windrower drum, via heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads The final drive chain is totally enclosed for longer service life The rock windrower drum is constructed of 8 5/8” (219mm) heavy wall tube Hard surfaced 5/8” thick ...

Overview

  • Windrows 2” to 25” rocks with ease, forming them into neat uniform rows
  • Power is supplied to the rock windrower drum, via heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads
  • The final drive chain is totally enclosed for longer service life
  • The rock windrower drum is constructed of 8 5/8” (219mm) heavy wall tube
  • Hard surfaced 5/8” thick (15.9mm) x 6” (152.4mm) long teeth are welded directly to the drum, resulting in problem-free operation
  • Narrow, 8.5’ transport width

Specifications

Model
SMR-800 Rock Windrower
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Schulte
Quantity
0
Manufacturer Qty
0
Tires
16.5/6.5 x 8
Drum Speed
102 rpm @ 540 input
Drum Width
88 5/8” (2215 mm)
Transport Width
8.5’ (2591 mm)
Horsepower Required
35 hp to 100 hp (30 - 60 kw)
Maximum Ground Speed
5 mph (8kph)
Weight (Approximate)
1350 lbs. (613 kg)
Recommended Ground Speed
2 mph (3 kph)
