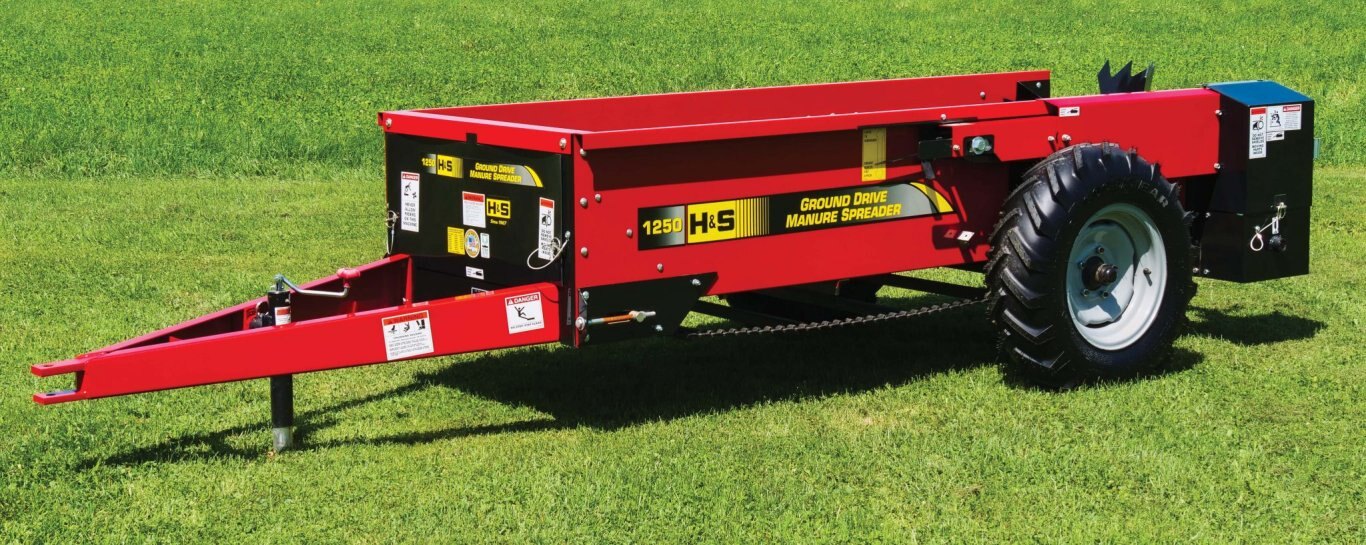

H&S S1250 31.27 Cu. Ft. Struck Per ASAE S324.2 Ground Drive Manure Spreader
Features All 1200 series models feature durable powder coated paint. A bonded poly floor reduces main apron drag and the power needed to move the load. 7.60 x 15 deep lug traction tires Heavy-duty, 8-paddle 17.5″ beater assembly The beater is chain driven. The #62 main apron is driven by a simple adjustable 2-speed ratchet drive mechanism. Engage for the beater and mai...
Overview
Features All 1200 series models feature durable powder coated paint. A bonded poly floor reduces main apron drag and the power needed to move the load. 7.60 x 15 deep lug traction tires Heavy-duty, 8-paddle 17.5″ beater assembly The beater is chain driven. The #62 main apron is driven by a simple adjustable 2-speed ratchet drive mechanism. Engage for the beater and main apron is made by lowering a single control lever. Swing-away jack
Specifications
Category Name
Agriculture
Apron Drive
Adjustable Ratchet Drive
Inside Depth
17 ½″ (44 cm)
Upper Beater
Fine Spread Pan
Inside Length
8′1″ (264 cm)
Overall Length
13′ 4″ (406 cm)
Weight W/Tires
790 lbs. (358 kg)
Box Construction
Powder Coated Steel
Diameter Of Beater
17 ½″ (44 cm)
Floor Construction
Poly Bonded
Standard Tire Size
7.60 x 15
Top Of Flare Width
36″ (91 cm)
Capacity - Old Rating
50 bu
Overall Width W/Standard Tires
58″ (147 cm)
Overall Loading Height-Top Of Side
32 ½″ (82 cm)
Capacity Cu. Ft. Heaped Per ASAE S324.2
48.67
Capacity Cu. Ft. Struck Level Per ASAE S324.2
31.27
options
Options
Rear Pan
The optional rear pan helps create a finer spread pattern.
