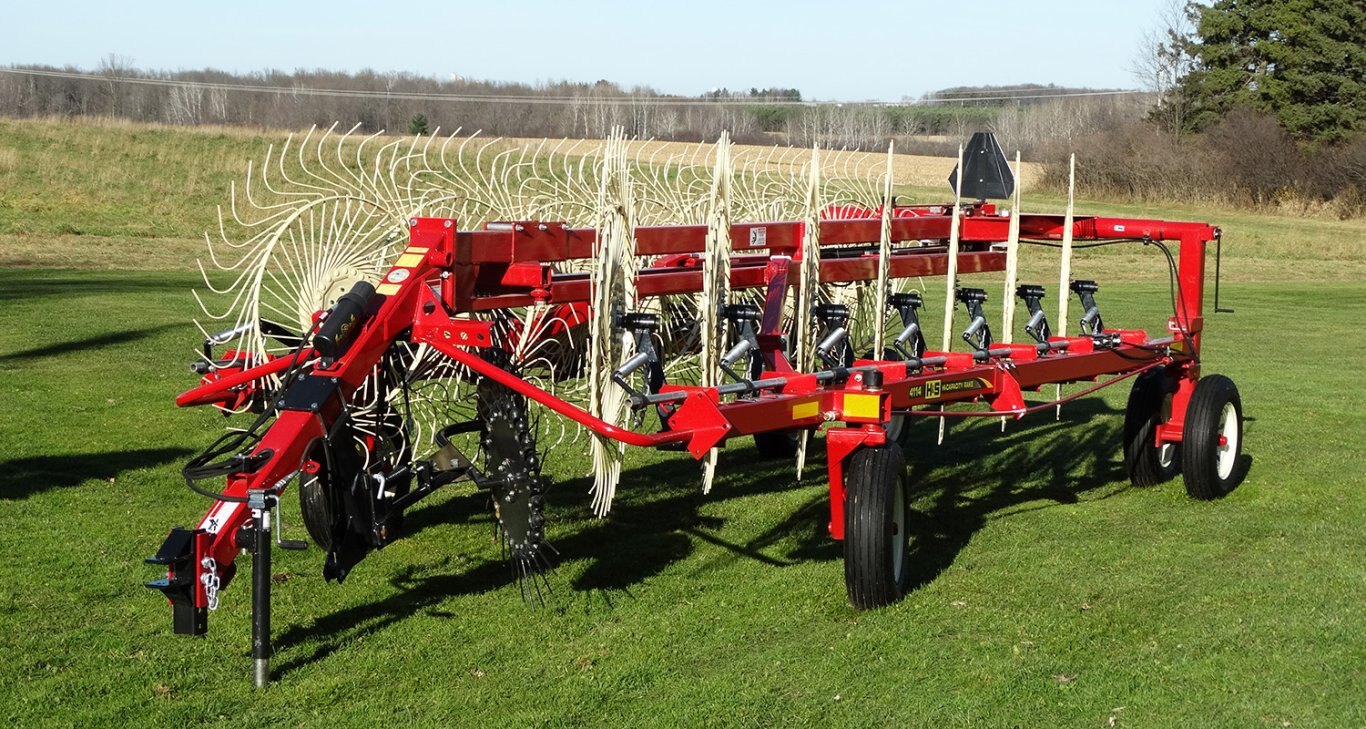

H&S HC4114 14-Wheel Hi-Capacity Rake

Features

• The H&S HC4114  HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels.
• With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
• The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
• Rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
• Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
• A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine-tune the rake to fit varying conditions.
• An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.
• Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
• Rear limited oscillating offset tandem transport wheels ensure a smooth, level ride, even over irrigation tracks.
• Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 28′.
