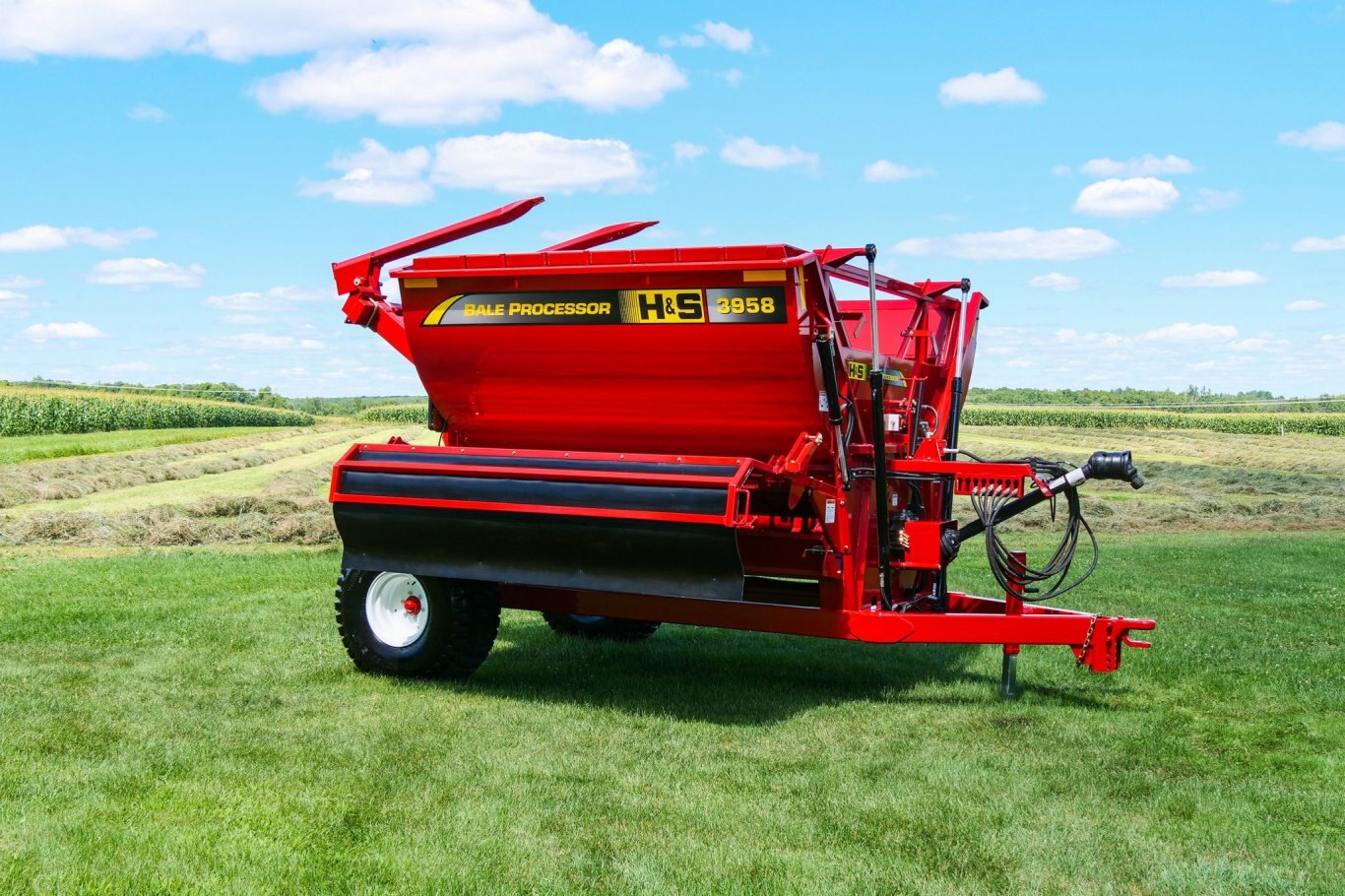

H&S BP3958 Right-Hand Discharge Bale Processor
Features Exclusive rocking cradle design handles and processes high moisture silage, dry hay, straw and corn stalks bales. Easy cradle travel adjustment for various sizes of bales. Right hand discharge w/hydraulic deflector lift allows the product to be windrowed directly into bunks or any desired height. Load up to 20 small square bales. Full adjustable loading forks handle all sizes...
Overview
Features Exclusive rocking cradle design handles and processes high moisture silage, dry hay, straw and corn stalks bales. Easy cradle travel adjustment for various sizes of bales. Right hand discharge w/hydraulic deflector lift allows the product to be windrowed directly into bunks or any desired height. Load up to 20 small square bales. Full adjustable loading forks handle all sizes of bales. Simple hydraulic valving activates the cradle rock and speed. Built in PTO shaft & hydraulic hose storage bracket. No belts or chains. Unibody frame construction with high clearance. 1000 RPM PTO w/easy access shear pin. Remove twine through access door opposite of discharge. Full pan on the rear lift frame. Lower deflector. Fully adjustable clevis hitch. 14L X 16.1 implement tires. LED tail lights.
Specifications
Category Name
Agriculture
PTO
1 3/8" 21 Spline 1000 RPM
Hammer Size
1/2″ x 2″ x 5 1/4"
Hydraulic Deflector
Standard
Rotor Swing Diameter
25 1/8"
Heavy-Duty Hitch Jack
Standard
Required Hydraulic Remotes
(3) 1 for Cradle, 1 for Loading, 1 for Hydraulic Deflector
Adjustable Hitch W/Heavy-Duty Clevis
Standard
brochure
Brochure
Name
Link
3900-Bale-Processor-and-LW1100-Linewrap
Download
