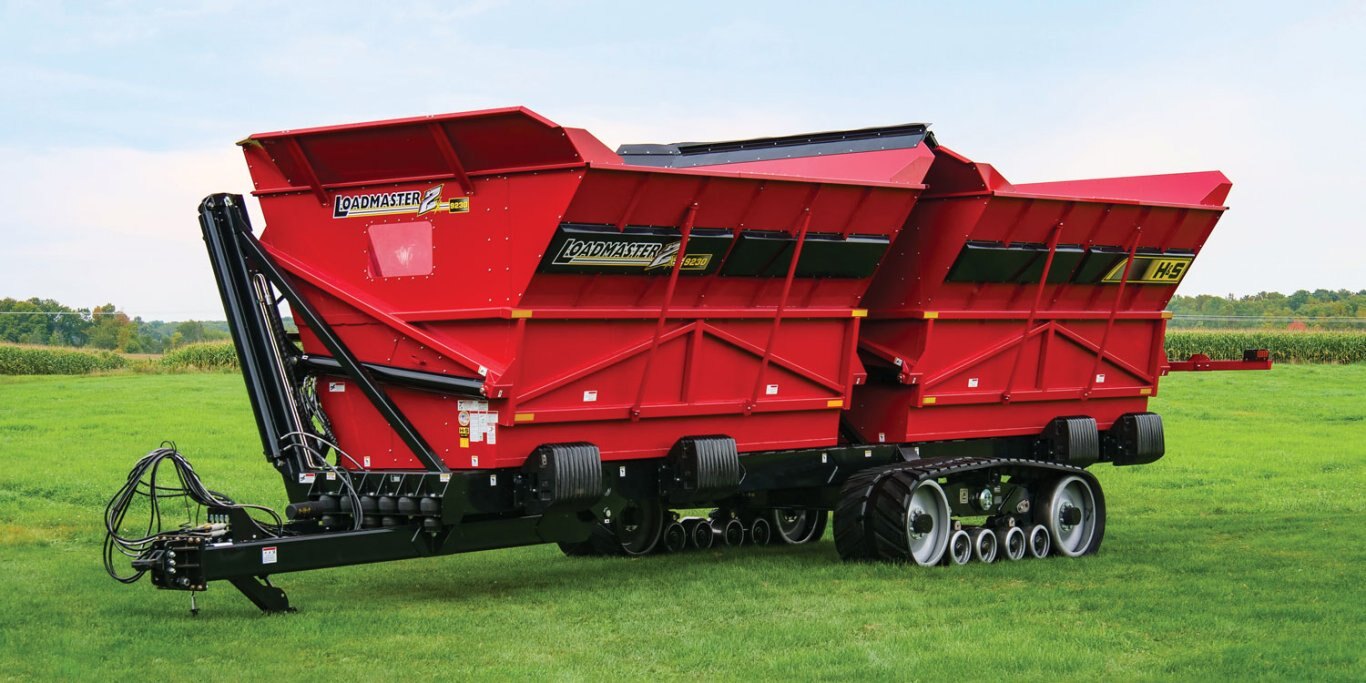

H&S HDB9230T 30' Loadmaster 2X Hi-Dump Box

Features Rubber tongue suspension system. Combination 10- and 12-gauge steel tub construction. Heavy gusseted and reinforced box style frame. Each box is capable of lifting and dumping approximately 30,000 lbs. of product for a total of 60,000 lbs. The variable dumping height gives you more versatility at harvest time. The ENTIRE dumping cycle should take approximately two minute...

Overview

Features

  • Rubber tongue suspension system.
  • Combination 10- and 12-gauge steel tub construction.
  • Heavy gusseted and reinforced box style frame.

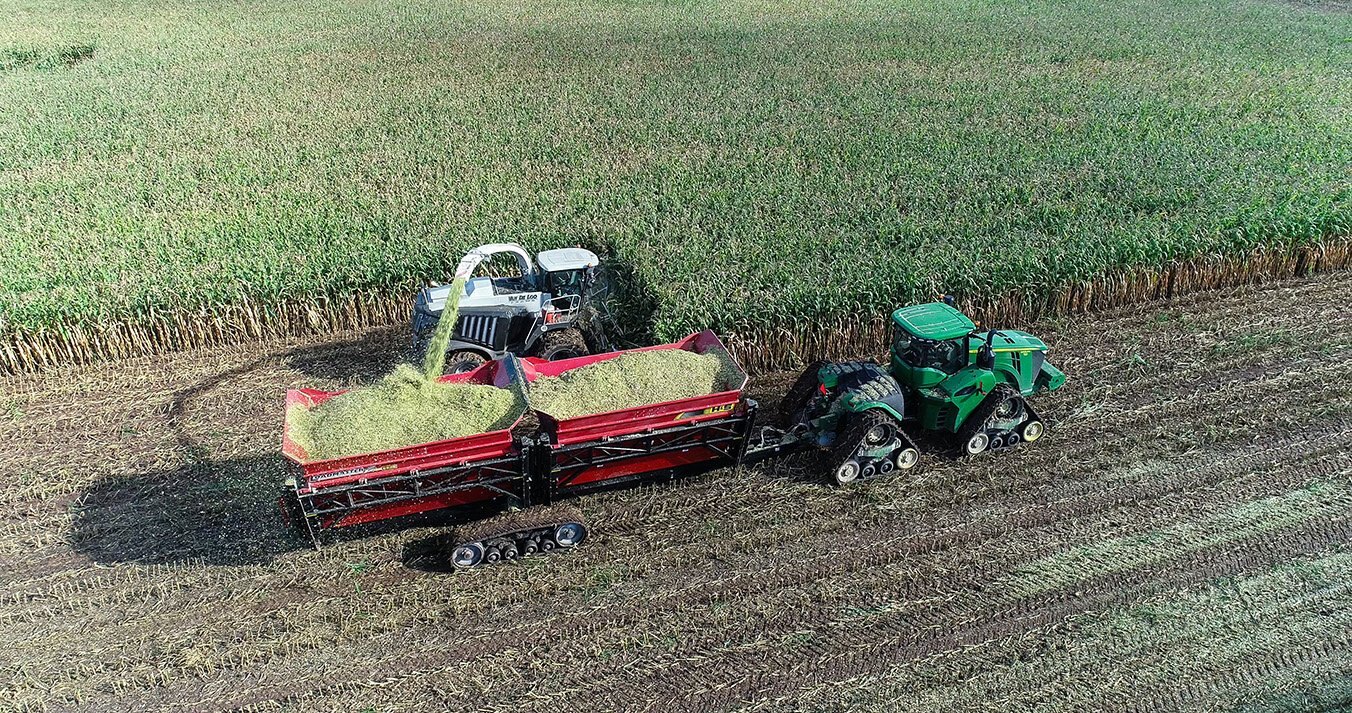

  • Each box is capable of lifting and dumping approximately 30,000 lbs. of product for a total of 60,000 lbs.
  • The variable dumping height gives you more versatility at harvest time.
  • The ENTIRE dumping cycle should take approximately two minutes depending on hydraulic supply output.
  • The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a full dump cycle.

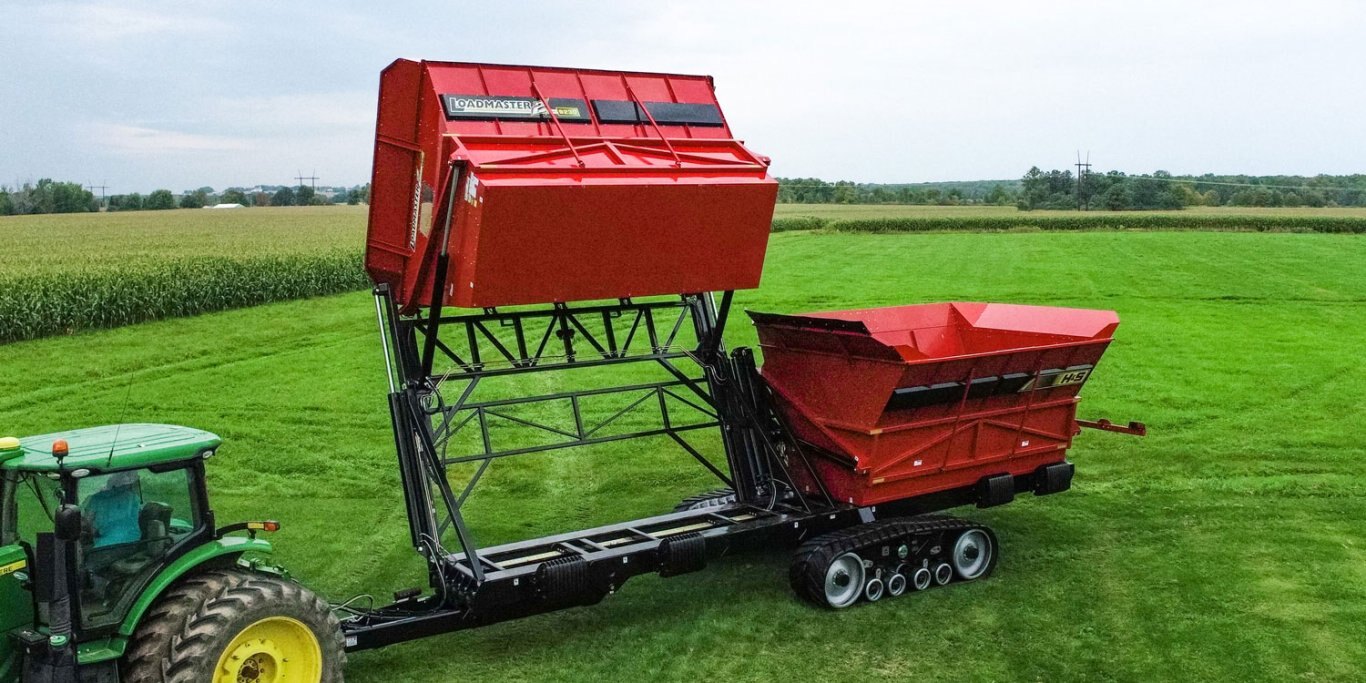

  • Right hand dump has a 47-degree dumping angle with a dump height of over 15′.
  • (1) 27” x 16” sight window and (2) tub access panels in each box.
  • LED highway lighting.
  • Adjustable height single clevis swivel hitch.
  • Camso track system.
  • Hydraulic jack



Specifications

Model
HDB9230T
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
H&S
Quantity
0
Manufacturer Qty
0
Jack
Hydraulic
Hitch
Cat 4 or Cat 5 Bullnose Hitch
Tread Width
163” (13’ 7”)
Spindle Size
4.5"
Overall Width
163” (13’ 7”)
Loading Height
134” (11’ 2”)
Overall Height
158” (13’ 2”)
Overall Length
568” (47’ 4”)
Shipping Height
134” (11’ 2”)
Depth Of Box/Boxes
89” (7’ 5”)
Maximum Dump Height
184” (15’ 4”)
Minimum Dump Height
116” (9’ 8”)
Shipping Weight W/ Tires
48,177 lbs.
Inside Length Of Box/Boxes
180” (15’)
Maximum Dump Lip Clearance
31” (2’ 7”)
Inside Width Of Box/Boxes - Bottom/Top
65”/136” (5’ 5”/11’ 4”)
Cubic Ft. Capacity Struck Level W/ Ext.
(2) 1,129 cu ft each
Cubic Ft. Capacity Struck Level W/o Ext.
(2) 863 cu ft each
Dump Cylinders (size/length On Each Box)
5” x 71.25”
Overall Length Min./Max W/ Pole Adjustment
568" (47' 4")
Rear Lift Cylinder (size/length On Each Box)
4.75” x 72”
Front Lift Cylinder (size/length On Each Box)
5.5” x 72”

options

  • Category 4 Bullnose Hitch

  • Category 5 Bullnose Hitch

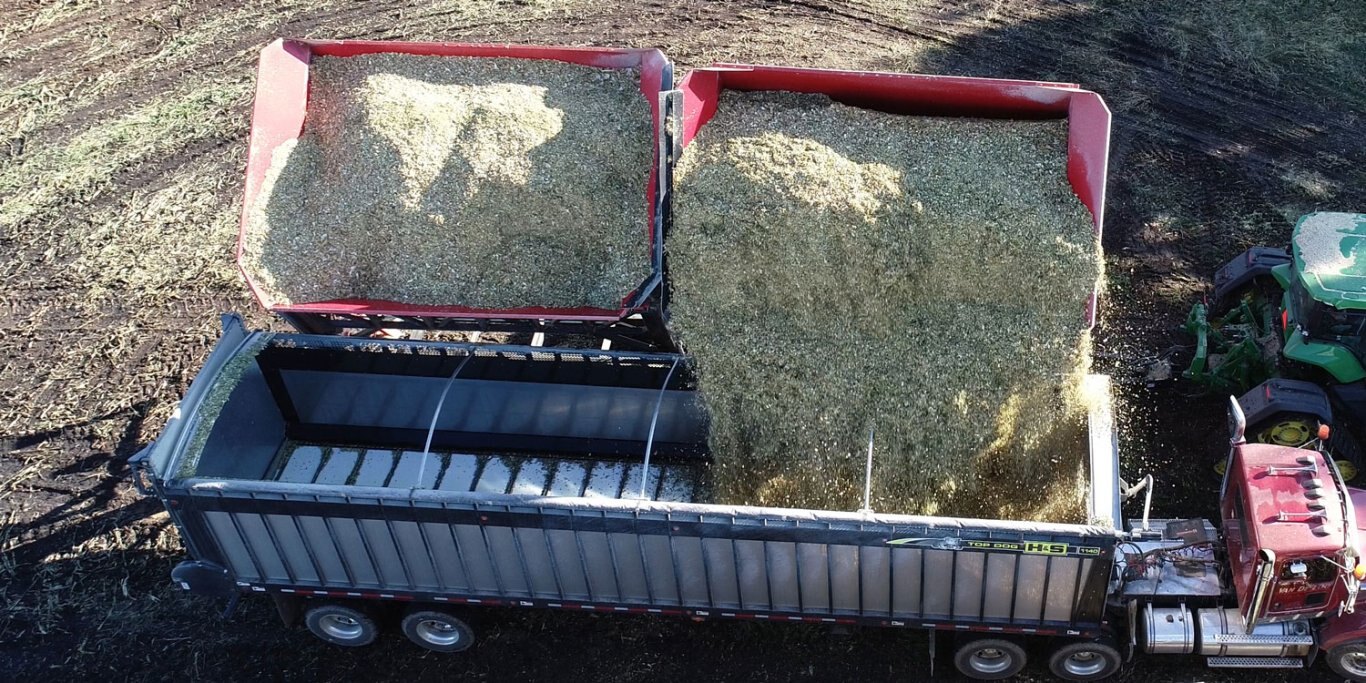

  • Dumping Extension for Unloading Into a 36’ Semi-Trailer

  • Dumping Extension for Unloading Into a 40’ Semi-Trailer
