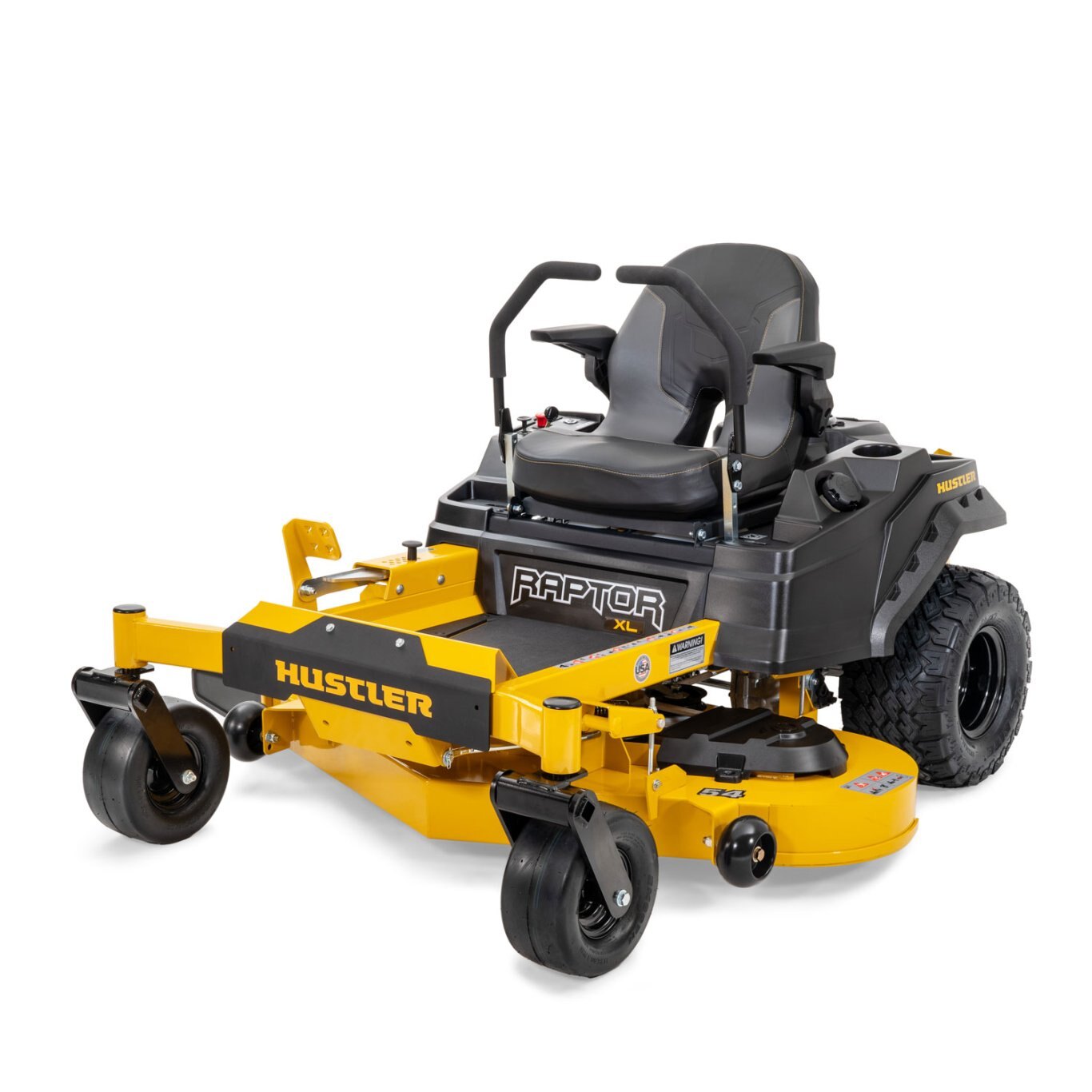

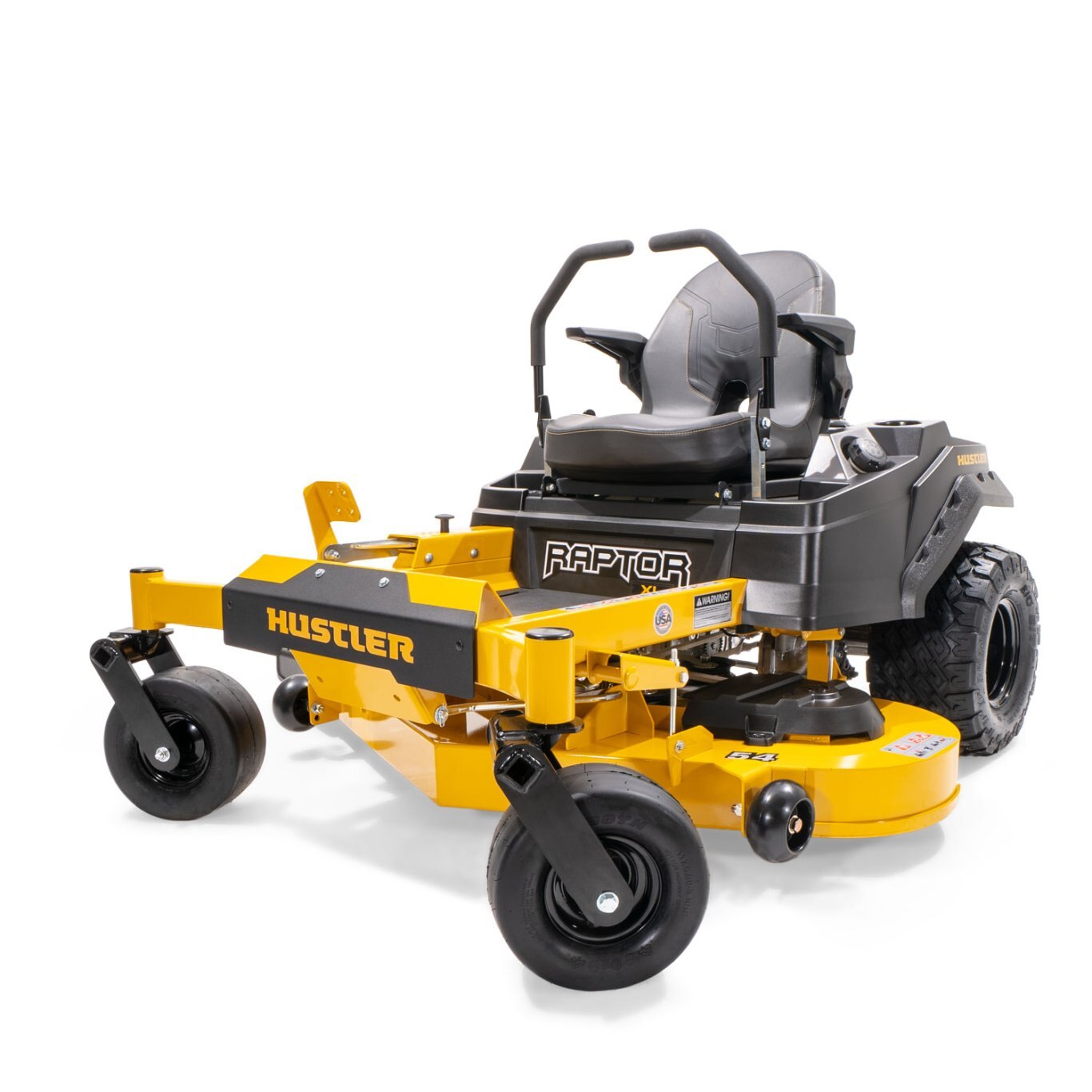

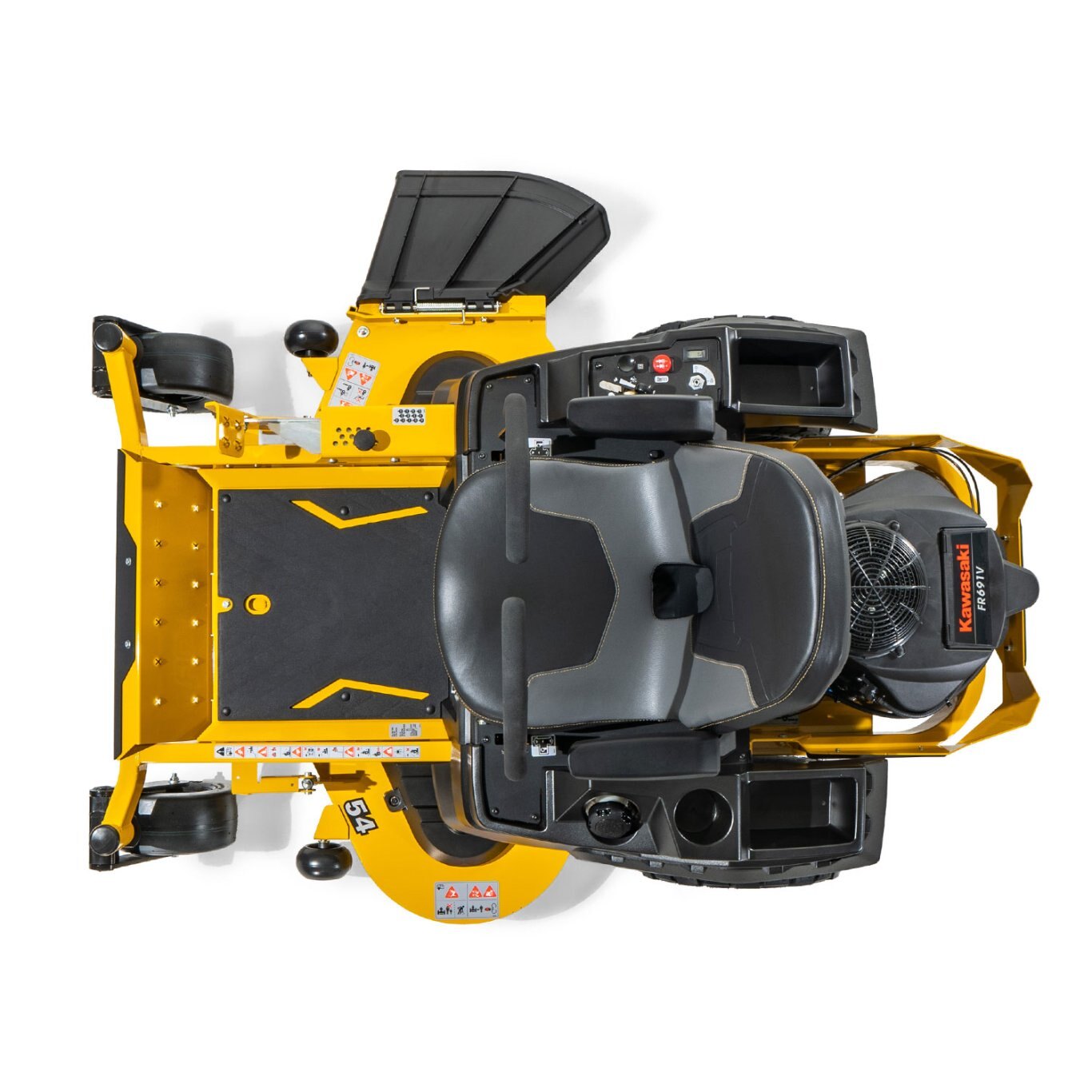

Hustler Raptor XL-54"

Name: Hustler Raptor XL-54"
Brand: Hustler
Availability: OutOfStock

The Raptor XL features premium upgrades to the Raptor X ...

View In-Stock

Overview

The Raptor XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR Engine. More comfort and more power backed by an industry leading 3yr / 300hr warranty.

21.5hp & 23hp Kawasaki Engines
42” & 54” decks
Up to 7 mph mowing speed
3-year / 300 hour limited warranty

Engine	Deck Sizes
21.5HP - Kawasaki FR651	42”
23HP - Kawasaki FR691	54”

Specifications

Model

Raptor XL

Category Name

Zero Turn Mowers

Year

2025

Sale Type

New

Manufacturer

Hustler

Quantity

Manufacturer Qty

Gallery

features

Premium Seat

Compared to Raptor X seat, the XL seat features a higher back and added padding with the same armrests and air flow to the back.

Premium Engine

The V-Twin Kawasaki® engine is the highest rated residential engine available.

FlexForks®

Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.

key specs

WARRANTY

3 Year/300 hour residential

DRIVE_TIRE

18 X 10.5-8 BigBite™

FRONT_TIRE

11 X 6

TRANSMISSION

Hydro-Gear ZT-2200

CUTTING_WIDTH

54"

FUEL_CAPACITY

3 gal.

CUTTING_HEIGHT

1.5" to 4.5"

ENGINE_HORSEPOWER

GROUND_SPEED_(FWD)

Up to 7 mph

ENGINE_MANUFACTURER

Kawasaki FR691

engine

COOLING

Air Cooled

DISPLACEMENT

726cc

ENGINE_WARRANTY

3 Year Warranty

ENGINE_HORSEPOWER

ENGINE_MANUFACTURER

Kawasaki FR691

drive system

TYPE

Dual Hydrostatic

TRANSMISSION

Hydro-Gear ZT-2200

FUEL_CAPACITY

3 gal.

PARKING_BRAKE

Integrated with steering levers

GROUND_SPEED_(FWD)

Up to 7 mph

deck

SPINDLES

Aluminum with 1" shaft and double lip sealed ball bearings

DECK_LIFT

Foot Operated

DECK_DEPTH

4.5"

BLADE_LENGTH

18.50"

CUTTING_WIDTH

54"

DECK_MATERIAL

Fabricated 11 gauge steel

CUTTING_HEIGHT

1.5" to 4.5"

SPINDLE_MOUNTS

Reinforced 7 gauge steel

BLADE_TIP_SPEED

18,600

DECK_ENGAGEMENT

Ogura GT1.5

IMPACT_TRIM_AREA

1/4" x 1" steel bar

NUMBER_OF_BLADES

construction

FRAME

1.5" X 3" steel tubing

FRONT_AXLE

Fabricated with sealed ball bearings

FRONT_CASTER_FORK

FlexFork®

FRONT_CASTER_WHEEL

Sealed ball bearings

general

SEAT

Bolstered high-back seat with armrests and built-in lumbar support

CUP_HOLDER

dimensions

WEIGHT_(LBS)

594

HEIGHT_(INCHES)

42.6

LENGTH_(INCHES)

71.7

DRIVE_TIRE_(INCHES)

18 X 10.5-8 BigBite™

FRONT_TIRE_(INCHES)

11 X 6

WIDTH_W/_CHUTE_UP_(INCHES)

58.6

TIRE-TO-TIRE_WIDTH_(INCHES)

46.5

PRODUCTIVITY_(ACRES_PER_HOUR)

3.05

dimensions with catcher

CATCHER_STYLE

2-bag

CATCHER_CAPACITY

5.4 bushel

POWERED_/_NON-POWERED

Non-powered

MOWER_WIDTH_W/_CATCHER

69.5

MOWER_LENGTH_W/_CATCHER

91.4
