ID # 27677584

Case IH AFS Connect Steiger 420

Videos
Call for Price
Overview

370-692 HP
AFS Connect™ Steiger Series

The most powerful 4WD tractor in the industry — with record-setting fuel efficiency, best-in-class comfort, and the ability to remotely manage your farm, fleet and field information with AFS Connect. All new AFS Connect™ Steiger® tractors come with an AFS Connect technology subscription.

Quick Specs

  • Engine: 12.9 L Tier4 B/Final
  • Engine Rated Horsepower: 420
  • Maximum Engine Horsepower: 462
  • PTO Power:​​ 365
  • Rowtrac Operating Width (Rowtrac Model): 80 in (standard) / 88 in, 120 in (optional)

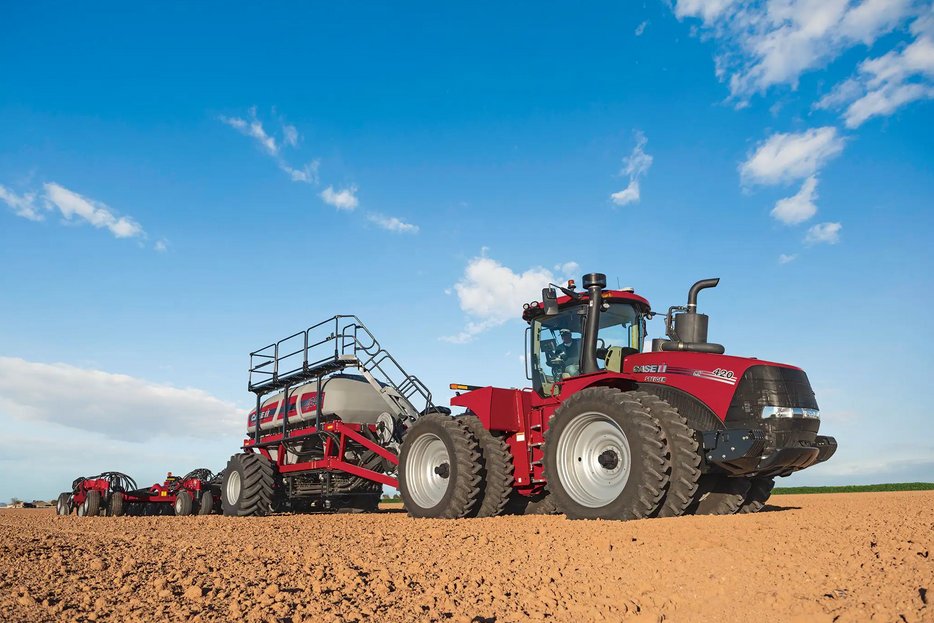

Case IH AFS Connect Steiger 420 AFS Connect Steiger 420

Available in Rowtrac™ or Heavy-Duty Wheeled configurations, the AFS Connect™ Steiger® 420 offers the optimal balance of weight to horsepower in a narrow-frame tractor with a 12.9L engine. .

Available AFS Connect™ Steiger® 420 Configurations

Transmissions

  • PowerDrive - Standard
  • CVXDrive™ - Optional​

Configurations

  • Heavy-Duty Wheeled
  • Rowtrac™​
Specifications
Model
AFS Connect Steiger 420
Category Name
Tractors
Year
2023
Sale Type
New
Manufacturer
Case IH
Engine Make
FPT
Engine Model
Cursor 13
3-Point Hitch
Category 4N
1000 Available
Optional
Engine Power Hp
420
Transmission Type
Powershift
Displacement Inches
787
Max.Engine Power Hp
462
Overall Width Inches
120
Number Of Forward Speeds
16
Classification Horsepower
420
Maximum Speed Forward Mph
25
WheelbaseTrackbase Inches
148
Tank Capacity Gallons (US)
310
Total Allowable Weight Ibs
49500
Implement Pump Flow Gallons (US) / Min
42
