Case IH Nutri-Tiller 955

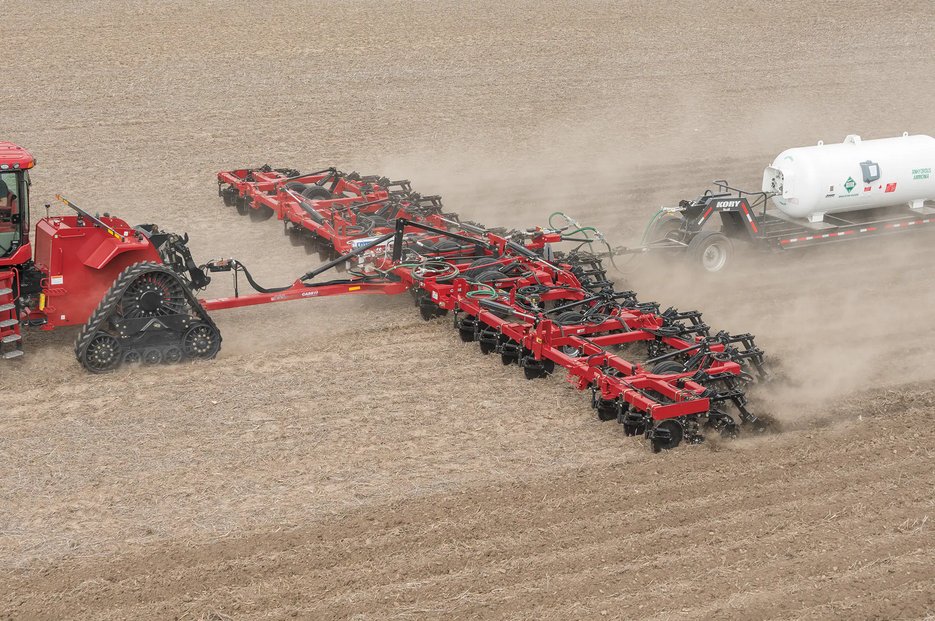

  • Case IH Nutri Tiller 955
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

15’ - 60' width

Strip-Till

The Nutri-Tiller 955 and 5310 are your one-pass seedbed solutions to improve soil tilth so air and water move freely and your planter can do its job placing the seed at the proper depth and creating good seed-to-soil contact.

Case IH Nutri Tiller 955 Nutri-Tiller 955

The Nutri-Tiller 955 Strip-Till applicator is a one-pass seedbed solution that helps effectively manage time, resources and inputs for improved productivity and greater return on investment.

Quick Specs

  • Frame Style: Pull-Type

  • Rows: 8, 12, 16, or 24 row models

  • Working Width: 20 - 60 ft (6 - 18.3 m)

  • Coulters: 24 in (610 cm)
Specifications
Model
Nutri-Tiller 955
Year
2023
Sale Type
New
Manufacturer
Case IH
Shanks/knives
HCS ST, spring reset shank; 2-plate knife adapter
Number Of Rows
8
Depth Adjustment
Single point, crank adjust
Rear Trailer Hitch
Constant level, swinging, extendable
Main Frame Tire Size
12.5Lx15, F1 or IF320/70 R15
Wing Frame Tire Size
No wing tires
Row Spacings - In (mm)
30 (762)
Coulter Diameter Inches
24
Drawbar/Hitch Description
Drawbar category 3, clevis
Shank Trip Force - Lb (kg)
850 or 1,250 (386 or 567)
Working Width, Maximum Ft/in
20 ft
Working Width, Minimum Ft/in
20 ft
Conditioning Basket - In (mm)
14 (356) Flat or concave optional
Method Of Folding For Transport
Single fold
Residue Tine Wheels, Row Cleaners
With adjustable down pressure spring
Ground Engagement, Strip-Till Or Other
Strip-Till
Hookup To Tractor, Mounted Or Pull-type
Pull-type
Liquid Fertilizer Tank Capacity - Gal (L)
No tank
Fertilizer Material: Dry, Liquid, Or Anhydrous
Dry, Liquid, or Anhydrous
Sealing Discs, Closing Discs, Berm Builder - In (mm)
18 (457) smooth or notched
