ID # 27677705

Case IH Ecolo-Tiger® 875

Call for Price
Overview

11' 3" - 26’ 0” width

Disk Rippers

Tackle your primary tillage needs with a Case IH disk ripper — built for durability in tough conditions and flexibility to match your needs.

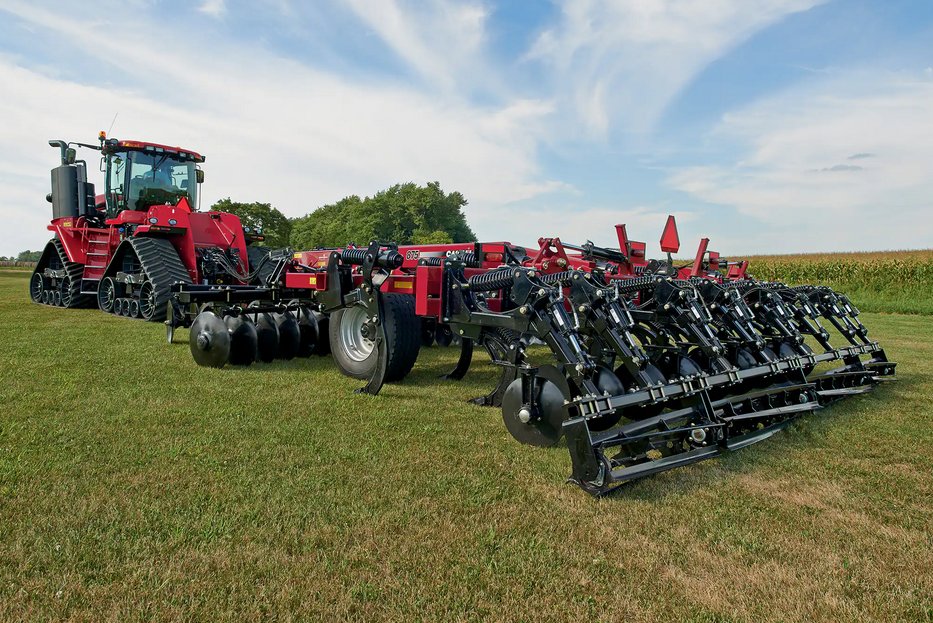

Case IH Ecolo Tiger® 875 Ecolo-Tiger® 875

The most aggressive disk ripper on the market with aggressive disk-cutting power, high underframe clearance, and minimum 36-inch spacing between points.

Quick Specs

  • Working Width: 14, 18, 22, 26 ft (4.3, 5.5,
    6.7, 7.9 m)

  • Number of Shanks: 7, 9, 11, 13

  • Shank Spacing: 24 in (61 cm)

  • Required Horse Power: 280 - 600 (209 - 447 kW)

Specifications
Model
Ecolo-Tiger® 875
Year
2023
Sale Type
New
Manufacturer
Case IH
Total Weight Is
2000
Working Width Ft/in
18 ft
Shank Spacing Inches
24
Blade Diameter Inches
24
Number Of Main Shanks
9
Transport Width Ft/in
16 ft 9 in
Blade Thickness Inches
0.256
Blade Spacing - In (mm)
15 (381) w/ 24" std; 12 (305) w/ 26" opt.
Required Power - Hp (kW)
360 to 520 (268 to 388)
Rear Mounting, Individual Or Gang
Pairs
Blade Mounting, Individual Or Gang
Individual "C" hangers w/24" std; gangs w/ 26" opt
Primary Blade Type, Disk Or Coulter
Disk
Primary Rear Blade Type, Disk Or Coulter
Rear disk levelers to fill in shank path
Rear Blade Angle Or Gang Angle - Degrees
Opposing angles to level shank furrows
Shank Operating Depth, Maximum - In (mm)
14 (356)
First Blade Angle Or Gang Angle - Degrees
15
Second Blade Angle Or Gang Angle - Degrees
15
Depth Adjustment, Disc/coulter Gangs/beams Only
Independent hydraulic disk depth control; AFS Soil Command optional
Fore-aft Sequence Of Blades, Shanks, Rear Attachments
Disk-Disk-Shanks-Leveler Disks
Transport Wheel Mounting, Single, Dual, Walking Tandem
Single
literature
Ecolo-Tiger 875 Disk Ripper Brochure (3.05 MB)                                                                                                                                                                                          Download
