Mantis 201P
Videos
Overview
Optimized
Tackle any job with the Mantis Prime Mover

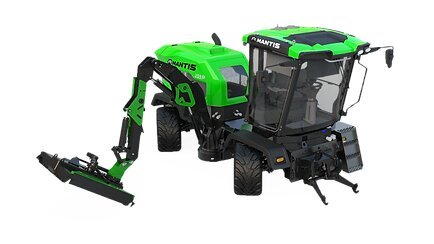

The Mantis can operate interchangeable attachments for boom mowing, wide area mowing, and various other jobs.
Safety
The Mantis is designed with safety in mind. A full-visibility cab allows you to see your work from any angle. A rear-view camera and backup alarm makes reversing simple.
Compatibility
As an optimized tool carrier, the Mantis is designed with the space claim for various attachments. The Mantis has the ability to operate front, side, and rear mount attachments.
Maneuverability
With the ability to rotate the cab 90 degrees in either direction and crab steer, the Mantis gives you full visibility and maneuverability no matter where you are.
Transportation

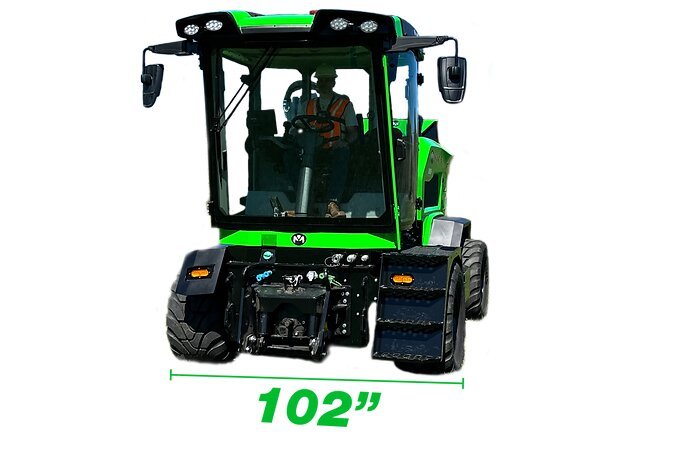

Unlike traditional tractors with boom mowers, the Mantis has a standard transport width of 102” which means it can be operated on all roadways.
Specifications
Category Name
Agriculture
visibility & comfort
Visibility & Comfort
6 Window Cab with 72 sq ft of Glass
Light Bar (DOT spec).
Front and/or rear PTOs with hydraulic remote options.
Rear drawbar hitch with 6,000 lbs towing capacity.
Attachment hydraulic quick disconnect package.
90° rotating cab (either direction) capability.
Hi-flow front hydraulic circuit.
DOT trailer lighting (front and rear) connector.
Skid-steer (front) electrical connector.
Front CAT II three-point-hitch with 4500 lb. capacity.
Front skid-steer hitch.
Safety
Protective structure meets ISO 8082 Roll-Over Protective Structures (ROPS)
Cab size configured for ISO 3477 (operator space requirements)
Polycarbonate window option
Safety Lighting
12" high-visibility touch screen
Fully User Configurable CAN-bus controls & operator interface
Rear-view camera
Backup Alarm
Bluetooth Stereo with Microphone
Mower Indicators
Inching/Brake Pedal
Steering Wheel
Left Hand-Operated Direction Control
Speedometer
Convenience Outlets
Pressurized filtered air HVAC system

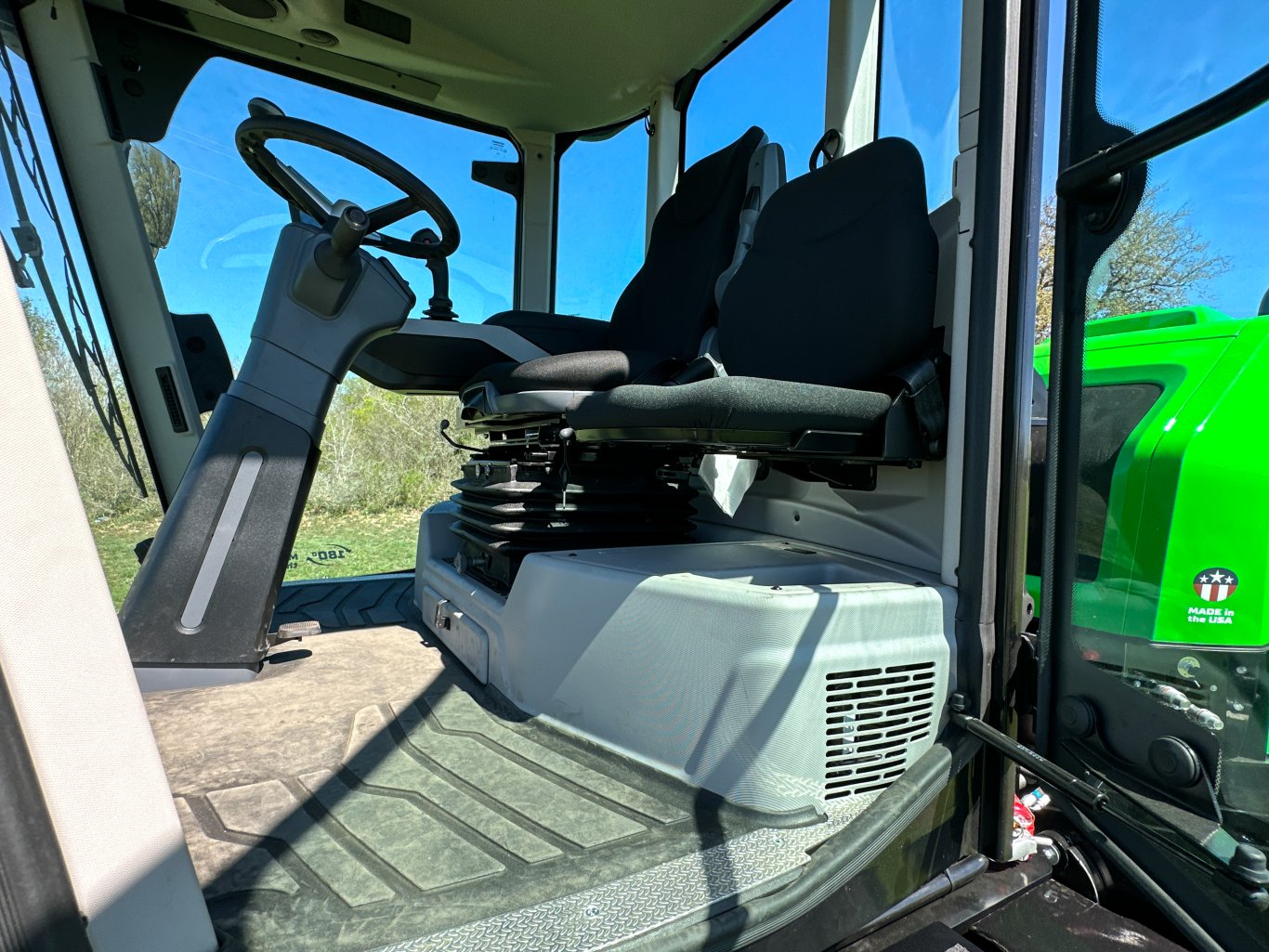

High-quality air ride seat with arm rests
Training Seat
Cup Holder
Personal Storage Compartments
any direction, any time
Any Direction, Any Time
Steering / Wheel Options
Two- and Four-wheel automatic-synchronizing steering with CRAB steer option.
Two speed gearing provides 100% torque increase for rough terrain.
100% locking front and rear differentials.
2 Wheel Steering
All Wheel Steering
Crab Steering
attachment options
Attachment Options
Boom reach of either 24' or 30' from center of the machine to the edge of cut.
A swing back breakaway feature.
Capable of mowing within 6" of tires.
Capable of mowing 45° downward slope.
Head options:
22" Ditch Renovator
48" Brush Cutting Flail
60" HD Grass Flail
50" SD Rotary Head
60" SD Rotary Head
50" Mulching Head
69" Buzz Bar Saw Head
90" Buzz Bar Saw Head

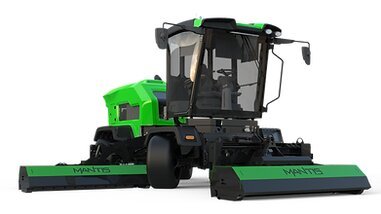

21' hydraulic driven rotary or flail mower option with center deck out front.
Hydraulic float functions allow the mowers to follow the ground elevations.
The mowing heights are adjustable between 1” – 9”.
technical data
Technical Data
Rotating Cabin - Optional
Joystick - Electronic 3-Axis
Transmission - Hydrostatic
Traction - 4x4
Transport Speed - 25 MPH
Working Speed - 0.1 - 8 MPH
Base machine weight without attachments - 15,000 lbs
Maximum Attachment Weight - 12,000 lbs
Brand - Deutz 5.2L
Model - Tier IV/Stage V turbocharged diesel engine
Power - 155HP / 201HP
Fuel Tank Capacity - 55 gal
DEF Tank Capacity - 5 gal
Alternator - 220A
Fan - FLEXXAIRE Reversible Self-cleaning
