Kuhn - RA 125 TRUCK

The Reel Advantage

Standard Reel

The flexibility of choosing between a standard or Helix reel is a true advantage on the new RA 125 & RA 130. The standard reel does an excellent job mixing, but if you're mixing stickier or higher-roughage rations, the open-center Helix reel is your answer.

The standard reel is a time-tested design going back to the original development of the reel mixers. This is the lower cost reel option and performs extremely well in free-flowing rations with a lower amount of roughage.

The standard reel consists of a main center tube supporting four spring-loaded straight bars. The springs serve as protectors from obstructions to both the reel and the side wall. Poly wipers on two of the bars assist with cleanout especially with granular, free-flowing materials.

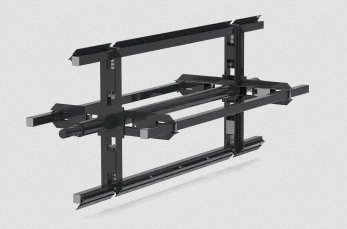

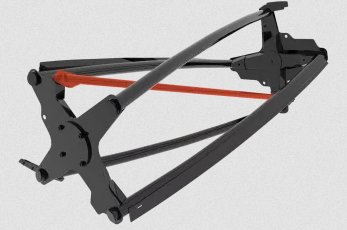

The Unique Helix® Reel

The Helix® reel has a robust build and has been thoroughly tested to withstand the most challenging conditions. The design of the reel crossbars evens the pressure across the length of the reel for smoother operation. It also engages with the feed more smoothly.

The open-center design eliminates obstructions in the reel and provides superior feed movement and unparalleled mixing action. The benefits are unmistakable, with faster, more consistent mixing, improved load leveling, optimized mixer space utilization and fewer dead spots for the ultimate in ration quality.

A mix bar runs diagonally across the center of the reel to help ensure consistent feed movement throughout the entire mixing chamber. The reel crossbars keep feed moving efficiently around the outside of the chamber. The secondary mechanical mixing action from the mix bar provides a fast and thorough mix even in wet, heavy rations with large amounts of distillers grains.

Superior Feed Movement

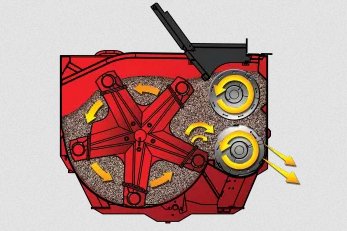

The reel thoroughly mixes rations gently without causing excessive damage to the feed ingredients, providing desired particle length in the TMR. The large reel gently lifts material up into the side augers for excellent side-to-side movement. The upper auger moves material rearward, while the lower auger moves material forward for end-to-end mixing. This helps feed continually charge the door during discharge.

Low Fuel Consumption

Quality performance, with the lowest possible input costs is the goal of every operation. The fast, gentle mixing of KUHN Knight reel mixers helps maximize efficiency and minimize expense. The reel and auger design eliminates much of the force and pressure seen with other mixer types, resulting in low horsepower requirements and, correspondingly, less fuel consumption for economical operation.

Consistent Mixing and Discharge

KUHN Knight reel mixers provide a consistent mix, even with small batches, for a balanced ration from beginning to end. Their quick, even discharge with a more complete cleanout helps save time and maximizes efficiency.

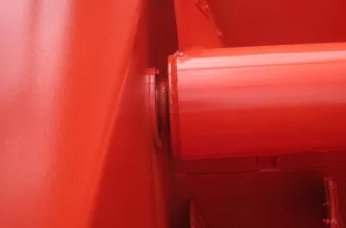

Welded Auger Shafts

 Auger shafts on both the upper and lower augers are fused to the auger drive flange with a weld, providing a weld joint as strong as the shaft. This results in superior strength and durability over other conventionally welded shafts.

Simple Feeding

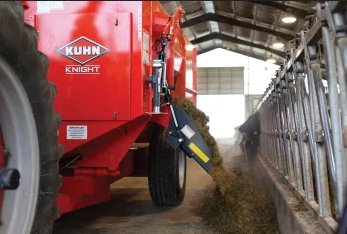

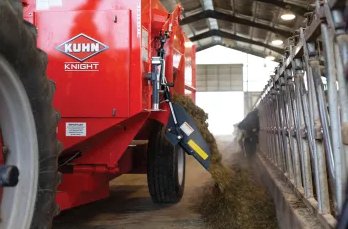

 With a high discharge point, these mixers allow for the use of a simple slide tray in most feeding situations. The long tray makes it easy to feed deeper into most bunks while preventing feed loss from the wind. This dependable, low-cost option also results in less maintenance.

Heavy-Duty Discharge Door

The door discharge and pivot have been redesigned and strengthened for extended service life. The linkage incorporates two ball pivots for smooth operation.

Tailor Your Machine

Multiple Discharge Options

To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor, or a 3-auger discharge to be equipped on your RA 100 Series mixer.

Slide Tray
The high discharge point of the Reel mixers allows use of the simple, dependable, low-cost slide tray in most applications. It has simple hydraulic controls and the long discharge tray reaches deeper into bunks to prevent feed loss from the wind. Magnets are standard on slide tray.

Chain and Slat Conveyor
Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations.

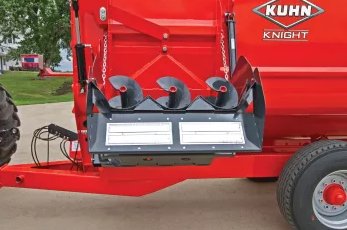

3-Auger Discharge
The 3-auger discharge allows adjustment for feeding into higher bunks. It has a simple, hydraulic drive that provides smooth, even discharge. Long lasting, poly chute liners help prevent rust and limit wear. The 3-auger discharge comes standard with fixed tip-off and built-in magnets.

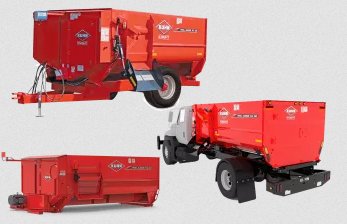

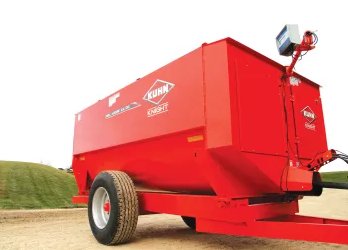

Trailer, Truck & Stationary Models

To suit your operation’s needs, KUHN Knight RA 125 & 130 mixers are available in trailer, truck-mounted or stationary configurations.

Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding.

Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again.

Whether mixing wood chips or a ration for your livestock, KUHN Knight RA 100 Series stationary mixers are ideal for maximizing feeding efficiency and mixer throughput on any operation. Stationary mixers are perfect for producers with centralized feed storage that are looking to deliver a final product by a method other than bringing the mixer to the final destination. This could include- belt delivery, truck delivery, or a variety of other options.
