Kuhn - OWR 6000

Efficient Productivity

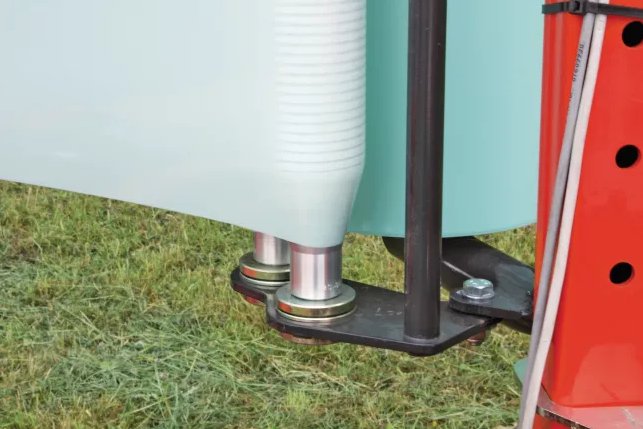

Patented, Conical Pre-Stretcher

Thirty-five years of KUHN wrapping heritage have proven these pre-stretchers in various conditions around the world. The standard pre-stretchers, which each hold a 30” (750 mm) roll, are made of aluminum to avoid build-up of tack from the film. Both outer ends of the aluminum rollers are cone-shaped to maintain the optimum width of the film and reduce the risk of film tear on the edges. The special ribbed profile of the aluminum rollers keeps air and water away from the film. The location of the pre-stretchers makes it very easy to change the film rolls. The standard pre-stretch of 70% is reached by a low-maintenance and low-noise gear transmission.

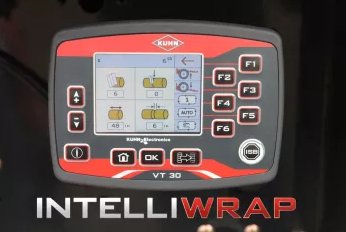

IntelliWrap™ Technology

Greater management and control of the wrapping process can be achieved by our unique IntelliWrap™ system. IntelliWrap uses simple electronics and efficient hydraulics to control the wrapping process and allows the operator to easily adjust film layers by one-layer increments. Settings such as film layers, seam layers, bale width and loading gap can digitally be set from the VT 30 monitor. Additionally, IntelliWrap records the bale count and the settings used for ten individual jobs, resulting in easy record keeping or billing for custom operators.

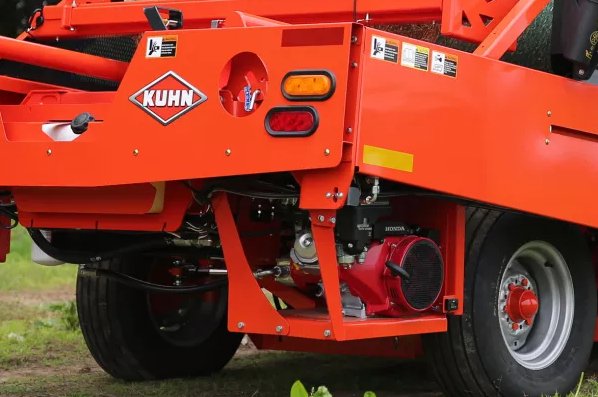

Efficient Power Use

The OWR 6000 features a standard 13-horsepower Honda iGX engine that automatically adjusts between high, medium and low idle depending on load, saving fuel. This wrapper also includes a priority hydraulic flow divider that controls the plunger and hoop drive together to rapidly feed bales into the wrapper, maximizing bales per hour. The priority hydraulic flow divider increases productivity and fuel savings by automatically adjusting the hoop and plunger speed depending on the number of film layers selected. Optimally allocating flow between the hoop and plunger, as film layers change, maximizes the hydraulic system performance and efficiency.

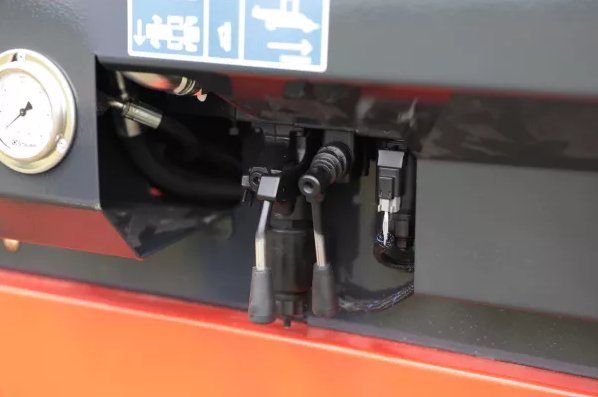

Propulsion & Steering

The OWR is equipped with a standard hydraulic propulsion and steering system. It can be driven using the levers in the control area or using the optional wireless remote.

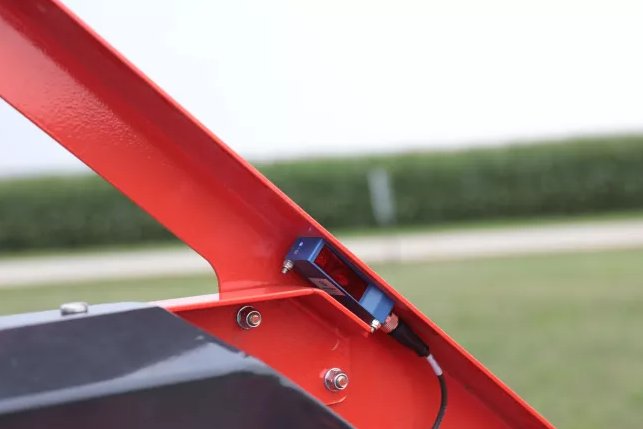

BaleEye Sensor

The KUHN OWR 6000 inline wrapper features BaleEye, a sensor, that detects when a bale is present on the loading platform triggering the plunger and hoop cycle. Conveniently increase the loading delay via the monitor to give the operator more time to load the bale or decrease the delay to increase productivity. With this photoelectric solution the operator does not have to worry about this component wearing out, being affected by loose debris or not being able to detect odd-shaped bales as with competitive mechanical sensors.

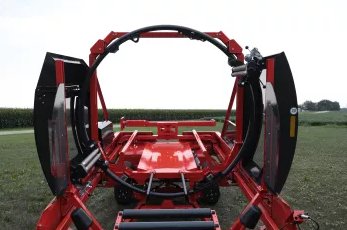

Dual-Driven Hoop

The OWR 6000 features two propulsion wheels for optimal hoop traction in adverse conditions. Non-pneumatic drive wheels, made of industrial-grade polymer, are maintenance free and never go flat. Additionally, these drive wheels are designed with a concave surface, which partially surrounds the hoop, improving hoop stability and traction. The drive wheels also have a special grove creating a space for water to escape, ensuring the hoops stays spinning even in tough, wet conditions.

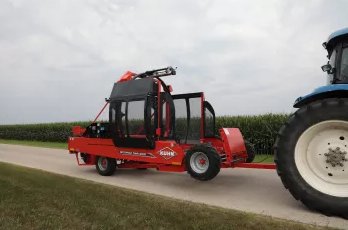

Transport

The OWR is easy to maneuver in transport configuration. The operator simply folds up the ramp tail and then extends the tongue. With the steering wheels centered and the machine hitched to the tractor, the operator simply raises the drive wheels, there are no drives to disengage. The OWR has a fixed hitch and rides only on the two rear tires making it easy to back up and position.

Safety

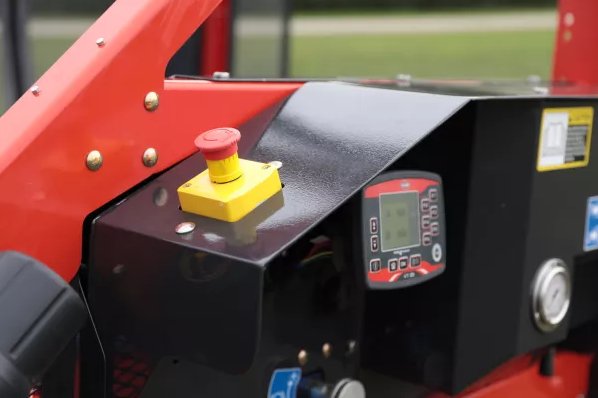

To ensure safe operation the OWR comes standard with two emergency buttons, one on each side of the machine. Additionally, the wireless remote has an emergency button. Whenever the door is opened to access the stretchers, the engine automatically shuts off, and the door also covers the control panel when open so the machine cannot be operated.

Preserve High-Quality Hay

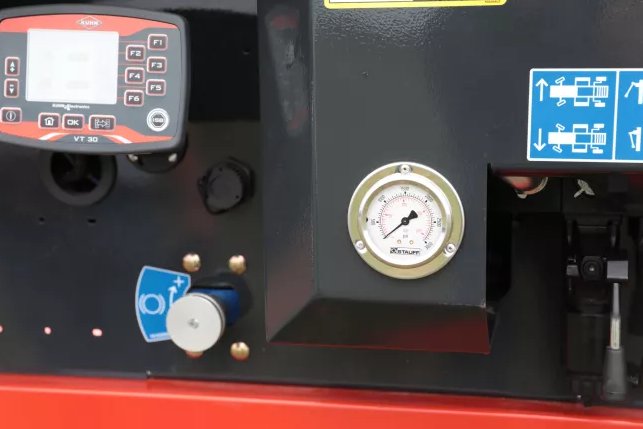

Bale Compression

Compression of the bales in the tube is maintained utilizing the hydraulic system on the drive wheels. A simple dial and gauge allow the operator to adjust pressure in the system, pressing bales together to limit air spaces in the tube helping maintain feed value during storage.

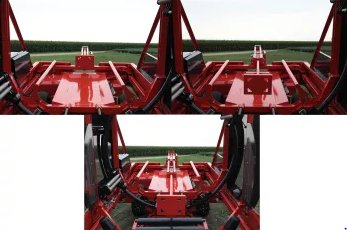

Last Bale Push-Off

To maintain compression on the last bales of the tube a standard mechanical last bale push-off system is included.

From the normal operating position (left) the operator pivots the push plate 90 degrees (1), after cycling the plunger the first stage is extended (2). Then after cycling the plunger again the second stage is extended (3) and the plunger is cycled for the final time to push the last bale off the machine.
